Base class for time-stepping schemes. Timestepper provides an approximation of the temporal derivatives of Data such that the i-th derivative of the j-th value in Data is represented as. More...
#include <timesteppers.h>

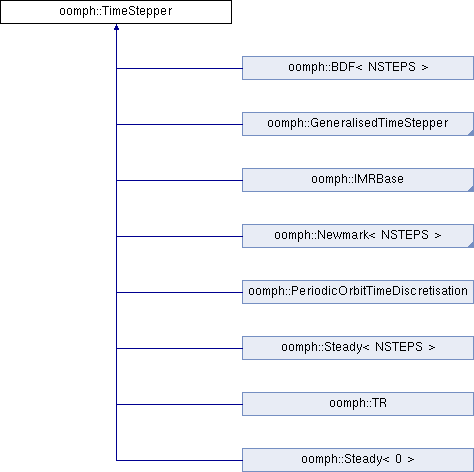

Inheritance diagram for oomph::TimeStepper:
Public Member Functions | |
| TimeStepper (const unsigned &tstorage, const unsigned &max_deriv) | |
| Constructor. Pass the amount of storage required by timestepper (present value + history values) and the order of highest time-derivative. More... | |
| TimeStepper () | |
| Broken empty constructor. More... | |
| TimeStepper (const TimeStepper &) | |
| Broken copy constructor. More... | |
| void | operator= (const TimeStepper &) |
| Broken assignment operator. More... | |
| virtual | ~TimeStepper () |
| virtual destructor More... | |
| unsigned | highest_derivative () const |
| Highest order derivative that the scheme can compute. More... | |
| virtual unsigned | order () const |
| Actual order (accuracy) of the scheme. More... | |
| double & | time () |
| Return current value of continous time. More... | |
| double | time () const |
| Return current value of continous time. More... | |
| virtual unsigned | ndt () const =0 |
| Number of timestep increments that are required by the scheme. More... | |
| virtual unsigned | nprev_values_for_value_at_evaluation_time () const |
| Number of previous values needed to calculate the value at the current time. i.e. how many previous values must we loop over to calculate the values at the evaluation time. For most methods this is 1, i.e. just use the value at t_{n+1}. See midpoint method for a counter-example. More... | |
| virtual unsigned | nprev_values () const =0 |
| Number of previous values available: 0 for static, 1 for BDF<1>,... More... | |
| virtual void | set_weights ()=0 |
| Function to set the weights for present timestep (don't need to pass present timestep or previous timesteps as they are available via Time_pt) More... | |
| void | make_steady () |
| Function to make the time stepper temporarily steady. This is trivially achieved by setting all the weights to zero. More... | |
| bool | is_steady () const |
| Flag to indicate if a timestepper has been made steady (possibly temporarily to switch off time-dependence) More... | |
| bool | predict_by_explicit_step () const |
| Flag: is adaptivity done by taking a separate step using an ExplicitTimeStepper object? More... | |
| ExplicitTimeStepper * | explicit_predictor_pt () |
| void | set_predictor_pt (ExplicitTimeStepper *_pred_pt) |
| void | update_predicted_time (const double &new_time) |
| void | check_predicted_values_up_to_date () const |
| Check that the predicted values are the ones we want. More... | |
| unsigned | predictor_storage_index () const |
| Return the time-index in each Data where predicted values are stored if the timestepper is adaptive. More... | |
| void | enable_warning_in_assign_initial_data_values () |
| Enable the output of warnings due to possible fct pointer vector size mismatch in assign_initial_data_values (Default) More... | |
| void | disable_warning_in_assign_initial_data_values () |
| Disable the output of warnings due to possible fct pointer vector size mismatch in assign_initial_data_values. More... | |
| const DenseMatrix< double > * | weights_pt () const |
| Get a (const) pointer to the weights. More... | |
| virtual void | undo_make_steady () |
| Reset the is_steady status of a specific TimeStepper to its default and re-assign the weights. More... | |
| std::string | type () const |
| Return string that indicates the type of the timestepper (e.g. "BDF", "Newmark", etc.) More... | |
| void | time_derivative (const unsigned &i, Data *const &data_pt, Vector< double > &deriv) |
| Evaluate i-th derivative of all values in Data and return in Vector deriv[]. More... | |
| double | time_derivative (const unsigned &i, Data *const &data_pt, const unsigned &j) |
| Evaluate i-th derivative of j-th value in Data. More... | |
| void | time_derivative (const unsigned &i, Node *const &node_pt, Vector< double > &deriv) |
| Evaluate i-th derivative of all values in Node and return in Vector deriv[] (this can't be simply combined with time_derivative(.., Data, ...) because of differences with haning nodes). More... | |
| double | time_derivative (const unsigned &i, Node *const &node_pt, const unsigned &j) |
| Evaluate i-th derivative of j-th value in Node. Note the use of the node's value() function so that hanging nodes are taken into account (this is why the functions for Data and Node cannot be combined through simple polymorphism: value is not virtual). More... | |
| Time *const & | time_pt () const |
| Access function for the pointer to time (const version) More... | |
| Time *& | time_pt () |
| virtual double | weight (const unsigned &i, const unsigned &j) const |
| Access function for j-th weight for the i-th derivative. More... | |
| unsigned | ntstorage () const |
| Return the number of doubles required to represent history (one for steady) More... | |
| virtual void | assign_initial_values_impulsive (Data *const &data_pt)=0 |
| Initialise the time-history for the Data values corresponding to an impulsive start. More... | |
| virtual void | assign_initial_positions_impulsive (Node *const &node_pt)=0 |
| Initialiset the positions for the node corresponding to an impulsive start. More... | |
| virtual void | shift_time_values (Data *const &data_pt)=0 |
| This function advances the Data's time history so that we can move on to the next timestep. More... | |
| virtual void | shift_time_positions (Node *const &node_pt)=0 |
| This function advances the time history of the positions at a node. The default should be OK, but would need to be overloaded. More... | |
| bool | adaptive_flag () const |
| Function to indicate whether the scheme is adaptive (false by default) More... | |
| virtual void | set_predictor_weights () |
| Set the weights for the predictor previous timestep (currently empty – overwrite for specific scheme) More... | |
| virtual void | calculate_predicted_values (Data *const &data_pt) |
| Do the predictor step for data stored in a Data object (currently empty – overwrite for specific scheme) More... | |
| virtual void | calculate_predicted_positions (Node *const &node_pt) |
| Do the predictor step for the positions at a node (currently empty — overwrite for a specific scheme) More... | |
| virtual void | set_error_weights () |
| Set the weights for the error computation, (currently empty – overwrite for specific scheme) More... | |
| virtual double | temporal_error_in_position (Node *const &node_pt, const unsigned &i) |
| virtual double | temporal_error_in_value (Data *const &data_pt, const unsigned &i) |
| virtual void | actions_before_timestep (Problem *problem_pt) |
| virtual void | actions_after_timestep (Problem *problem_pt) |
Protected Attributes | |
| Time * | Time_pt |
| Pointer to discrete time storage scheme. More... | |
| DenseMatrix< double > | Weight |
| Storage for the weights associated with the timestepper. More... | |
| std::string | Type |
| String that indicates the type of the timestepper (e.g. "BDF", "Newmark", etc.) More... | |
| bool | Adaptive_Flag |
| Boolean variable to indicate whether the timestepping scheme can be adaptive. More... | |
| bool | Is_steady |
| Bool to indicate if the timestepper is steady, i.e. its time-derivatives evaluate to zero. This status may be achieved temporarily by calling make_steady(). It can be reset to the appropriate default by the function undo_make_steady(). More... | |
| bool | Shut_up_in_assign_initial_data_values |
| Boolean to indicate if the timestepper will output warnings when setting possibly an incorrect number of initial data values from function pointers. More... | |
| bool | Predict_by_explicit_step |
| Flag: is adaptivity done by taking a separate step using an ExplicitTimeStepper object? More... | |
| ExplicitTimeStepper * | Explicit_predictor_pt |
| double | Predicted_time |
| int | Predictor_storage_index |
| The time-index in each Data object where predicted values are stored. -1 if not set. More... | |
Detailed Description
Base class for time-stepping schemes. Timestepper provides an approximation of the temporal derivatives of Data such that the i-th derivative of the j-th value in Data is represented as.
where the time index t is such that
t=0refers to the current value of the Datat>0refers to the `history' values, i.e. the doubles that are stored in Data to represent the value's time derivatives. For BDF schemes these doubles are the values at previous times; for other timestepping schemes they can represent quantities such as previous first and second derivatives, etc.
TimeSteppers can evaluate all derivatives up to their order().
The first nprev_values() `history values' represent the values at the previous timesteps. For BDF schemes, nprev_values() = ntstorage()-1 , i.e. all `history values' represent previous values. For Newmark<NSTEPS>, only the first NSTEPS `history values' represent previous values (NSTEPS=1 gives the normal Newmark scheme).
Definition at line 219 of file timesteppers.h.
Constructor & Destructor Documentation
◆ TimeStepper() [1/3]
|
inline |
Constructor. Pass the amount of storage required by timestepper (present value + history values) and the order of highest time-derivative.
Definition at line 270 of file timesteppers.h.
References oomph::DenseMatrix< T >::resize().
◆ TimeStepper() [2/3]
|
inline |
Broken empty constructor.
Definition at line 292 of file timesteppers.h.
◆ TimeStepper() [3/3]
|
inline |
Broken copy constructor.
Definition at line 300 of file timesteppers.h.
References oomph::BrokenCopy::broken_copy().
◆ ~TimeStepper()
|
virtual |
virtual destructor
Destructor for time stepper, in .cc file so that we don't have to include explicit_timesteppers.h in header.
Definition at line 42 of file timesteppers.cc.
References oomph::Steady< NSTEPS >::Dummy_time, and Explicit_predictor_pt.
Member Function Documentation
◆ actions_after_timestep()
|
inlinevirtual |
Interface for any actions that need to be performed after a time step.
Reimplemented in oomph::IMRByBDF, and oomph::TR.
Definition at line 618 of file timesteppers.h.
Referenced by oomph::Problem::adaptive_unsteady_newton_solve(), oomph::IMRByBDF::nprev_values_for_value_at_evaluation_time(), and oomph::Problem::unsteady_newton_solve().
◆ actions_before_timestep()
|
inlinevirtual |
Interface for any actions that need to be performed before a time step.
Reimplemented in oomph::IMRByBDF, and oomph::TR.
Definition at line 614 of file timesteppers.h.
Referenced by oomph::Problem::adaptive_unsteady_newton_solve(), oomph::IMRByBDF::nprev_values_for_value_at_evaluation_time(), and oomph::Problem::unsteady_newton_solve().
◆ adaptive_flag()
|
inline |
Function to indicate whether the scheme is adaptive (false by default)
Definition at line 582 of file timesteppers.h.
Referenced by oomph::BDF< NSTEPS >::calculate_predicted_positions(), oomph::BDF< NSTEPS >::calculate_predicted_values(), oomph::IMRBase::calculate_predicted_values(), oomph::BDF< NSTEPS >::set_error_weights(), oomph::BDF< NSTEPS >::set_predictor_weights(), oomph::BDF< NSTEPS >::set_weights(), oomph::IMRBase::shift_time_positions(), oomph::BDF< NSTEPS >::temporal_error_in_position(), oomph::IMRBase::temporal_error_in_value(), and oomph::BDF< NSTEPS >::temporal_error_in_value().
◆ assign_initial_positions_impulsive()
|
pure virtual |
Initialiset the positions for the node corresponding to an impulsive start.
Implemented in oomph::BDF< NSTEPS >, oomph::Newmark< NSTEPS >, oomph::Steady< NSTEPS >, oomph::Steady< 0 >, oomph::ContinuationStorageScheme, oomph::TR, oomph::IMRBase, and oomph::PeriodicOrbitTimeDiscretisation.
◆ assign_initial_values_impulsive()
|
pure virtual |
Initialise the time-history for the Data values corresponding to an impulsive start.
Implemented in oomph::BDF< NSTEPS >, oomph::Newmark< NSTEPS >, oomph::Steady< NSTEPS >, oomph::Steady< 0 >, oomph::ContinuationStorageScheme, oomph::TR, oomph::IMRBase, and oomph::PeriodicOrbitTimeDiscretisation.
Referenced by oomph::Circle::Circle().
◆ calculate_predicted_positions()
|
inlinevirtual |
Do the predictor step for the positions at a node (currently empty — overwrite for a specific scheme)
Reimplemented in oomph::BDF< NSTEPS >, oomph::BDF< NSTEPS >, oomph::BDF< NSTEPS >, oomph::TR, oomph::BDF< NSTEPS >, and oomph::IMRBase.
Definition at line 594 of file timesteppers.h.
◆ calculate_predicted_values()
|
inlinevirtual |
Do the predictor step for data stored in a Data object (currently empty – overwrite for specific scheme)
Reimplemented in oomph::BDF< NSTEPS >, oomph::BDF< NSTEPS >, oomph::TR, oomph::BDF< NSTEPS >, oomph::IMRBase, and oomph::BDF< NSTEPS >.
Definition at line 590 of file timesteppers.h.
◆ check_predicted_values_up_to_date()
|
inline |
Check that the predicted values are the ones we want.
Definition at line 406 of file timesteppers.h.
References e, and oomph::Time::time().
Referenced by oomph::IMRBase::calculate_predicted_values().
◆ disable_warning_in_assign_initial_data_values()
|
inline |
Disable the output of warnings due to possible fct pointer vector size mismatch in assign_initial_data_values.
Definition at line 449 of file timesteppers.h.
◆ enable_warning_in_assign_initial_data_values()
|
inline |
Enable the output of warnings due to possible fct pointer vector size mismatch in assign_initial_data_values (Default)
Definition at line 444 of file timesteppers.h.
◆ explicit_predictor_pt()
|
inline |
Get the pointer to the explicit timestepper to use as a predictor in adaptivity if Predict_by_explicit_step is set.
Definition at line 389 of file timesteppers.h.
Referenced by oomph::Problem::calculate_predictions().
◆ highest_derivative()
|
inline |
Highest order derivative that the scheme can compute.
Definition at line 315 of file timesteppers.h.
References oomph::DenseMatrix< T >::nrow().
◆ is_steady()
|
inline |
Flag to indicate if a timestepper has been made steady (possibly temporarily to switch off time-dependence)
Definition at line 375 of file timesteppers.h.
Referenced by oomph::Problem::arc_length_step_solve_helper(), oomph::PoroelasticityEquations< 2 >::d2u_dt2(), oomph::AxisymmetricPoroelasticityEquations::d2u_dt2(), oomph::AxisymmetricLinearElasticityEquationsBase::d2u_dt2_axisymmetric_linear_elasticity(), oomph::LinearWaveEquations< DIM >::d2u_dt2_lin_wave(), oomph::LinearElasticityEquationsBase< DIM >::d2u_dt2_linear_elasticity(), oomph::AdvectionDiffusionReactionEquations< NREAGENT, DIM >::dc_dt_adv_diff_react(), oomph::FSIAxisymFoepplvonKarmanElement< NNODE_1D, FLUID_ELEMENT >::dposition_dt(), oomph::Node::dposition_dt(), oomph::Node::dposition_gen_dt(), oomph::PoroelasticityEquations< 2 >::dq_edge_dt(), oomph::AxisymmetricPoroelasticityEquations::dq_edge_dt(), oomph::PoroelasticityEquations< 2 >::dq_internal_dt(), oomph::AxisymmetricPoroelasticityEquations::dq_internal_dt(), oomph::PoroelasticityEquations< 2 >::du_dt(), oomph::AxisymmetricPoroelasticityEquations::du_dt(), oomph::AdvectionDiffusionEquations< DIM >::du_dt_adv_diff(), oomph::AxisymAdvectionDiffusionEquations::du_dt_axi_adv_diff(), oomph::AxisymmetricNavierStokesEquations::du_dt_axi_nst(), oomph::GeneralisedNewtonianAxisymmetricNavierStokesEquations::du_dt_axi_nst(), oomph::AxisymmetricLinearElasticityEquationsBase::du_dt_axisymmetric_linear_elasticity(), oomph::GeneralisedAdvectionDiffusionEquations< DIM >::du_dt_cons_adv_diff(), oomph::du_dt_cons_axisym_adv_diff(), oomph::FluxTransportEquations< DIM >::du_dt_flux_transport(), oomph::LinearWaveEquations< DIM >::du_dt_lin_wave(), oomph::LinearisedAxisymmetricNavierStokesEquations::du_dt_linearised_axi_nst(), oomph::LinearisedNavierStokesEquations::du_dt_linearised_nst(), oomph::GeneralisedNewtonianNavierStokesEquations< DIM >::du_dt_nst(), oomph::NavierStokesEquations< DIM >::du_dt_nst(), oomph::SphericalAdvectionDiffusionEquations::du_dt_spherical_adv_diff(), oomph::UnsteadyHeatEquations< DIM >::du_dt_ust_heat(), oomph::WomersleyEquations< DIM >::du_dt_womersley(), oomph::Node::dx_dt(), oomph::Node::dx_gen_dt(), oomph::Problem::get_dvaluesdt(), oomph::Problem::solve_eigenproblem(), oomph::Problem::steady_newton_solve(), and oomph::SegregatableFSIProblem::steady_segregated_solve().
◆ make_steady()
|
inline |
Function to make the time stepper temporarily steady. This is trivially achieved by setting all the weights to zero.
Definition at line 360 of file timesteppers.h.
References oomph::DenseMatrix< T >::initialise().
Referenced by oomph::Problem::arc_length_step_solve_helper(), oomph::Problem::get_dvaluesdt(), oomph::Problem::solve_eigenproblem(), oomph::Problem::steady_newton_solve(), and oomph::SegregatableFSIProblem::steady_segregated_solve().
◆ ndt()
|
pure virtual |
Number of timestep increments that are required by the scheme.
Implemented in oomph::BDF< NSTEPS >, oomph::Newmark< NSTEPS >, oomph::Steady< NSTEPS >, oomph::Steady< 0 >, oomph::ContinuationStorageScheme, oomph::PeriodicOrbitTimeDiscretisation, oomph::TR, and oomph::IMRBase.
Referenced by oomph::Problem::add_time_stepper_pt().
◆ nprev_values()
|
pure virtual |
Number of previous values available: 0 for static, 1 for BDF<1>,...
Implemented in oomph::BDF< NSTEPS >, oomph::Newmark< NSTEPS >, oomph::Steady< NSTEPS >, oomph::Steady< 0 >, oomph::ContinuationStorageScheme, oomph::PeriodicOrbitTimeDiscretisation, oomph::TR, and oomph::IMRBase.
Referenced by oomph::AlgebraicFSIDrivenCavityMesh< ELEMENT >::algebraic_node_update(), oomph::AlgebraicCollapsibleChannelMesh< ELEMENT >::algebraic_node_update(), oomph::Circle::Circle(), oomph::RefineablePolarTaylorHoodElement::get_interpolated_values(), oomph::RefineablePolarCrouzeixRaviartElement::get_interpolated_values(), oomph::FiniteElement::get_x(), oomph::MacroElementNodeUpdateNode::node_update(), oomph::AlgebraicRefineableQuarterTubeMesh< ELEMENT >::node_update_central_region(), oomph::AlgebraicRefineableQuarterCircleSectorMesh< ELEMENT >::node_update_in_central_box(), oomph::AlgebraicRefineableQuarterCircleSectorMesh< ELEMENT >::node_update_in_lower_right_box(), oomph::AlgebraicRefineableQuarterCircleSectorMesh< ELEMENT >::node_update_in_upper_left_box(), oomph::AlgebraicRefineableQuarterTubeMesh< ELEMENT >::node_update_lower_right_region(), oomph::AlgebraicRefineableQuarterTubeMesh< ELEMENT >::node_update_upper_left_region(), oomph::PseudoBucklingRing::position(), oomph::PseudoBucklingRing::PseudoBucklingRing(), oomph::ImmersedRigidBodyTriangleMeshPolygon::reset_reference_configuration(), oomph::TetMeshBase::snap_nodes_onto_geometric_objects(), and oomph::UnstructuredTwoDMeshGeometryBase::snap_nodes_onto_geometric_objects().
◆ nprev_values_for_value_at_evaluation_time()
|
inlinevirtual |
Number of previous values needed to calculate the value at the current time. i.e. how many previous values must we loop over to calculate the values at the evaluation time. For most methods this is 1, i.e. just use the value at t_{n+1}. See midpoint method for a counter-example.
Reimplemented in oomph::IMRByBDF, oomph::IMR, and oomph::IMRBase.
Definition at line 348 of file timesteppers.h.
◆ ntstorage()
|
inline |
Return the number of doubles required to represent history (one for steady)
Definition at line 562 of file timesteppers.h.
References oomph::DenseMatrix< T >::ncol().
Referenced by oomph::Node::add_values_to_vector(), oomph::PeriodicOrbitTimeDiscretisation::assign_initial_data_values(), oomph::RefineableSolidQElement< 2 >::build(), oomph::RefineableSolidQElement< 3 >::build(), oomph::Multi_domain_functions::construct_new_external_halo_master_node_helper(), oomph::Multi_domain_functions::construct_new_external_halo_node_helper(), oomph::RefineableTriangleMesh< ELEMENT >::construct_new_halo_node_helper(), oomph::RefineableTriangleMesh< ELEMENT >::construct_new_node_load_balance_helper(), oomph::Node::copy(), oomph::PoroelasticityEquations< 2 >::d2u_dt2(), oomph::AxisymmetricPoroelasticityEquations::d2u_dt2(), oomph::AxisymmetricLinearElasticityEquationsBase::d2u_dt2_axisymmetric_linear_elasticity(), oomph::LinearWaveEquations< DIM >::d2u_dt2_lin_wave(), oomph::LinearElasticityEquationsBase< DIM >::d2u_dt2_linear_elasticity(), oomph::AdvectionDiffusionReactionEquations< NREAGENT, DIM >::dc_dt_adv_diff_react(), oomph::SurfactantTransportInterfaceElement::dcdt_surface(), oomph::FSIAxisymFoepplvonKarmanElement< NNODE_1D, FLUID_ELEMENT >::dposition_dt(), oomph::Node::dposition_dt(), oomph::Node::dposition_gen_dt(), oomph::PoroelasticityEquations< 2 >::dq_edge_dt(), oomph::AxisymmetricPoroelasticityEquations::dq_edge_dt(), oomph::PoroelasticityEquations< 2 >::dq_internal_dt(), oomph::AxisymmetricPoroelasticityEquations::dq_internal_dt(), oomph::PoroelasticityEquations< 2 >::du_dt(), oomph::AxisymmetricPoroelasticityEquations::du_dt(), oomph::AdvectionDiffusionEquations< DIM >::du_dt_adv_diff(), oomph::AxisymAdvectionDiffusionEquations::du_dt_axi_adv_diff(), oomph::AxisymmetricNavierStokesEquations::du_dt_axi_nst(), oomph::GeneralisedNewtonianAxisymmetricNavierStokesEquations::du_dt_axi_nst(), oomph::AxisymmetricLinearElasticityEquationsBase::du_dt_axisymmetric_linear_elasticity(), oomph::GeneralisedAdvectionDiffusionEquations< DIM >::du_dt_cons_adv_diff(), oomph::du_dt_cons_axisym_adv_diff(), oomph::FluxTransportEquations< DIM >::du_dt_flux_transport(), oomph::LinearWaveEquations< DIM >::du_dt_lin_wave(), oomph::LinearisedAxisymmetricNavierStokesEquations::du_dt_linearised_axi_nst(), oomph::LinearisedNavierStokesEquations::du_dt_linearised_nst(), oomph::GeneralisedNewtonianNavierStokesEquations< DIM >::du_dt_nst(), oomph::NavierStokesEquations< DIM >::du_dt_nst(), oomph::PolarNavierStokesEquations::du_dt_pnst(), oomph::SphericalAdvectionDiffusionEquations::du_dt_spherical_adv_diff(), oomph::SphericalNavierStokesEquations::du_dt_spherical_nst(), oomph::UnsteadyHeatEquations< DIM >::du_dt_ust_heat(), oomph::WomersleyEquations< DIM >::du_dt_womersley(), oomph::Node::dump(), oomph::Node::dx_dt(), oomph::Node::dx_gen_dt(), oomph::SolidFiniteElement::fill_in_jacobian_for_newmark_accel(), oomph::Missing_masters_functions::get_required_master_nodal_information_helper(), oomph::Multi_domain_functions::get_required_master_nodal_information_helper(), oomph::Missing_masters_functions::get_required_nodal_information_helper(), oomph::Multi_domain_functions::get_required_nodal_information_helper(), oomph::ContinuationStorageScheme::modify_storage(), oomph::PeriodicOrbitTimeDiscretisation::ndt(), oomph::GenericLagrangeInterpolatedProjectableElement< ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableTimeHarmonicLinearElasticityElement< TIME_HARMONIC_LINEAR_ELAST_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableDarcyElement< DARCY_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableLinearElasticityElement< LINEAR_ELAST_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectablePMLTimeHarmonicLinearElasticityElement< TIME_HARMONIC_LINEAR_ELAST_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableTimeHarmonicFourierDecomposedLinearElasticityElement< TIME_HARMONIC_LINEAR_ELAST_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableAxisymLinearElasticityElement< AXISYM_LINEAR_ELAST_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectablePVDElement< PVD_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableFoepplvonKarmanElement< FVK_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableUnsteadyHeatElement< UNSTEADY_HEAT_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableHelmholtzElement< HELMHOLTZ_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableDisplacementBasedFoepplvonKarmanElement< FVK_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectablePoissonElement< POISSON_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectablePMLHelmholtzElement< HELMHOLTZ_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableAxisymmetricPoroelasticityElement< AXISYMMETRIC_POROELASTICITY_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableAxisymmetricTaylorHoodElement< TAYLOR_HOOD_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::GeneralisedNewtonianProjectableAxisymmetricTaylorHoodElement< TAYLOR_HOOD_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableAxisymmetricCrouzeixRaviartElement< CROUZEIX_RAVIART_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::GeneralisedNewtonianProjectableAxisymmetricCrouzeixRaviartElement< CROUZEIX_RAVIART_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectablePVDElementWithContinuousPressure< PVD_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableGeneralisedNewtonianTaylorHoodElement< TAYLOR_HOOD_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableGeneralisedNewtonianCrouzeixRaviartElement< CROUZEIX_RAVIART_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableTaylorHoodElement< TAYLOR_HOOD_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::ProjectableCrouzeixRaviartElement< CROUZEIX_RAVIART_ELEMENT >::nhistory_values_for_coordinate_projection(), oomph::Node::Node(), oomph::PeriodicOrbitTimeDiscretisation::nprev_values(), oomph::Data::ntstorage(), oomph::ProjectableUnsteadyHeatElement< UNSTEADY_HEAT_ELEMENT >::output(), oomph::PRefineableQElement< 1, INITIAL_NNODE_1D >::p_refine(), oomph::PRefineableQElement< 2, INITIAL_NNODE_1D >::p_refine(), oomph::PRefineableQElement< 3, INITIAL_NNODE_1D >::p_refine(), oomph::Node::read(), oomph::Node::read_values_from_vector(), oomph::RefineableQSpectralElement< 3 >::rebuild_from_sons(), oomph::RefineableQSpectralElement< 2 >::rebuild_from_sons(), oomph::RefineableQSpectralElement< 1 >::rebuild_from_sons(), oomph::PRefineableQElement< 1, INITIAL_NNODE_1D >::rebuild_from_sons(), oomph::PRefineableQElement< 2, INITIAL_NNODE_1D >::rebuild_from_sons(), oomph::PRefineableQElement< 3, INITIAL_NNODE_1D >::rebuild_from_sons(), oomph::Node::set_position_time_stepper(), oomph::Data::set_time_stepper(), oomph::PeriodicOrbitEquations::set_timestepper_weights(), oomph::IMRBase::shift_time_positions(), oomph::Newmark< NSTEPS >::shift_time_positions(), oomph::NewmarkBDF< NSTEPS >::shift_time_positions(), and oomph::NewmarkBDF< NSTEPS >::shift_time_values().
◆ operator=()
|
inline |
Broken assignment operator.
Definition at line 306 of file timesteppers.h.
References oomph::BrokenCopy::broken_assign().
◆ order()
|
inlinevirtual |
Actual order (accuracy) of the scheme.
Reimplemented in oomph::BDF< NSTEPS >, oomph::Newmark< NSTEPS >, oomph::Steady< NSTEPS >, oomph::Steady< 0 >, oomph::ContinuationStorageScheme, oomph::IMRBase, oomph::PeriodicOrbitTimeDiscretisation, and oomph::TR.
Definition at line 319 of file timesteppers.h.
◆ predict_by_explicit_step()
|
inline |
Flag: is adaptivity done by taking a separate step using an ExplicitTimeStepper object?
Definition at line 382 of file timesteppers.h.
Referenced by oomph::Problem::calculate_predictions().
◆ predictor_storage_index()
|
inline |
Return the time-index in each Data where predicted values are stored if the timestepper is adaptive.
Definition at line 420 of file timesteppers.h.
References oomph::Global_string_for_annotation::string().
◆ set_error_weights()
|
inlinevirtual |
Set the weights for the error computation, (currently empty – overwrite for specific scheme)
Reimplemented in oomph::BDF< NSTEPS >, oomph::BDF< NSTEPS >, oomph::BDF< NSTEPS >, oomph::BDF< NSTEPS >, oomph::IMRBase, and oomph::TR.
Definition at line 598 of file timesteppers.h.
Referenced by oomph::Problem::adaptive_unsteady_newton_solve(), and oomph::Problem::initialise_dt().
◆ set_predictor_pt()
|
inline |
Set the pointer to the explicit timestepper to use as a predictor in adaptivity if Predict_by_explicit_step is set.
Definition at line 393 of file timesteppers.h.
◆ set_predictor_weights()
|
inlinevirtual |
Set the weights for the predictor previous timestep (currently empty – overwrite for specific scheme)
Reimplemented in oomph::BDF< NSTEPS >, oomph::BDF< NSTEPS >, oomph::BDF< NSTEPS >, oomph::IMRBase, oomph::TR, and oomph::BDF< NSTEPS >.
Definition at line 586 of file timesteppers.h.
Referenced by oomph::Problem::adaptive_unsteady_newton_solve().
◆ set_weights()
|
pure virtual |
Function to set the weights for present timestep (don't need to pass present timestep or previous timesteps as they are available via Time_pt)
Implemented in oomph::BDF< NSTEPS >, oomph::NewmarkBDF< NSTEPS >, oomph::NewmarkBDF< NSTEPS >, oomph::NewmarkBDF< NSTEPS >, oomph::NewmarkBDF< NSTEPS >, oomph::Newmark< NSTEPS >, oomph::Steady< NSTEPS >, oomph::Steady< 0 >, oomph::BDF< NSTEPS >, oomph::BDF< NSTEPS >, oomph::IMRByBDF, oomph::ContinuationStorageScheme, oomph::IMR, oomph::PeriodicOrbitTimeDiscretisation, oomph::TR, oomph::IMRBase, and oomph::BDF< NSTEPS >.
Referenced by oomph::Problem::adaptive_unsteady_newton_solve(), oomph::Newmark< NSTEPS >::assign_initial_data_values(), oomph::Problem::copy(), oomph::Problem::initialise_dt(), oomph::Problem::unsteady_newton_solve(), and oomph::SegregatableFSIProblem::unsteady_segregated_solve().
◆ shift_time_positions()
|
pure virtual |
This function advances the time history of the positions at a node. The default should be OK, but would need to be overloaded.
Implemented in oomph::BDF< NSTEPS >, oomph::NewmarkBDF< NSTEPS >, oomph::Newmark< NSTEPS >, oomph::Steady< NSTEPS >, oomph::Steady< 0 >, oomph::TR, oomph::ContinuationStorageScheme, oomph::PeriodicOrbitTimeDiscretisation, and oomph::IMRBase.
◆ shift_time_values()
|
pure virtual |
This function advances the Data's time history so that we can move on to the next timestep.
Implemented in oomph::BDF< NSTEPS >, oomph::NewmarkBDF< NSTEPS >, oomph::Newmark< NSTEPS >, oomph::Steady< NSTEPS >, oomph::Steady< 0 >, oomph::TR, oomph::ContinuationStorageScheme, oomph::PeriodicOrbitTimeDiscretisation, and oomph::IMRBase.
◆ temporal_error_in_position()
|
inlinevirtual |
Compute the error in the position i at a node zero here – overwrite for specific scheme.
Reimplemented in oomph::BDF< NSTEPS >, oomph::BDF< NSTEPS >, oomph::BDF< NSTEPS >, oomph::TR, oomph::BDF< NSTEPS >, and oomph::IMRBase.
Definition at line 602 of file timesteppers.h.
◆ temporal_error_in_value()
|
inlinevirtual |
Compute the error in the value i in a Data structure zero here – overwrite for specific scheme.
Reimplemented in oomph::BDF< NSTEPS >, oomph::BDF< NSTEPS >, oomph::BDF< NSTEPS >, oomph::TR, oomph::BDF< NSTEPS >, and oomph::IMRBase.
Definition at line 608 of file timesteppers.h.
◆ time() [1/2]
|
inline |
Return current value of continous time.
Definition at line 324 of file timesteppers.h.
References oomph::Time::time().
Referenced by oomph::PeriodicOrbitTimeDiscretisation::assign_initial_data_values(), oomph::ODEElement::fill_in_contribution_to_jacobian(), oomph::ODEElement::fill_in_contribution_to_residuals(), oomph::LinearisedAxisymmetricNavierStokesEquations::fill_in_generic_residual_contribution_linearised_axi_nst(), oomph::RefineableLinearisedAxisymmetricNavierStokesEquations::fill_in_generic_residual_contribution_linearised_axi_nst(), oomph::LinearisedNavierStokesEquations::fill_in_generic_residual_contribution_linearised_nst(), oomph::RefineableLinearisedNavierStokesEquations::fill_in_generic_residual_contribution_linearised_nst(), oomph::ImmersedRigidBodyElement::get_residuals_rigid_body_generic(), and oomph::ImmersedRigidBodyElement::output_centre_of_gravity().
◆ time() [2/2]
|
inline |
Return current value of continous time.
Definition at line 327 of file timesteppers.h.
References oomph::Time::ndt(), oomph::Global_string_for_annotation::string(), and oomph::Time::time().
◆ time_derivative() [1/4]
|
inline |
Evaluate i-th derivative of all values in Data and return in Vector deriv[].
Definition at line 474 of file timesteppers.h.
References oomph::Data::nvalue().
Referenced by oomph::ImmersedRigidBodyElement::dposition_dt(), oomph::ODEElement::fill_in_contribution_to_residuals(), oomph::ImmersedRigidBodyElement::get_residuals_rigid_body_generic(), oomph::ImmersedRigidBodyElement::output_centre_of_gravity(), and oomph::Newmark< NSTEPS >::shift_time_values().
◆ time_derivative() [2/4]
|
inline |
Evaluate i-th derivative of j-th value in Data.
Definition at line 489 of file timesteppers.h.
References t, and oomph::Data::value().
◆ time_derivative() [3/4]
|
inline |
Evaluate i-th derivative of all values in Node and return in Vector deriv[] (this can't be simply combined with time_derivative(.., Data, ...) because of differences with haning nodes).
Definition at line 506 of file timesteppers.h.
References oomph::Data::nvalue().
◆ time_derivative() [4/4]
|
inline |
Evaluate i-th derivative of j-th value in Node. Note the use of the node's value() function so that hanging nodes are taken into account (this is why the functions for Data and Node cannot be combined through simple polymorphism: value is not virtual).
Definition at line 524 of file timesteppers.h.
References t, and oomph::Node::value().
◆ time_pt() [1/2]
|
inline |
Access function for the pointer to time (const version)
Definition at line 540 of file timesteppers.h.
References oomph::Global_string_for_annotation::string().
Referenced by oomph::PseudoBucklingRing::accel(), oomph::IMRByBDF::actions_before_timestep(), oomph::Problem::add_time_stepper_pt(), oomph::TimeHarmonicLinearElasticityEquationsBase< DIM >::body_force(), oomph::LinearElasticityEquationsBase< DIM >::body_force(), oomph::PVDEquationsBase< DIM >::body_force(), oomph::GeneralisedNewtonianNavierStokesEquations< DIM >::extrapolated_strain_rate(), oomph::GeneralisedNewtonianAxisymmetricNavierStokesEquations::extrapolated_strain_rate(), oomph::AxisymmetricLinearElasticityEquations::fill_in_generic_contribution_to_residuals_axisymmetric_linear_elasticity(), oomph::PolarNavierStokesTractionElement< ELEMENT >::fill_in_generic_residual_contribution(), oomph::AxisymmetricPoroelasticityEquations::fill_in_generic_residual_contribution(), oomph::RefineableAxisymmetricNavierStokesEquations::fill_in_generic_residual_contribution_axi_nst(), oomph::RefineableGeneralisedNewtonianAxisymmetricNavierStokesEquations::fill_in_generic_residual_contribution_axi_nst(), oomph::AxisymmetricNavierStokesEquations::fill_in_generic_residual_contribution_axi_nst(), oomph::GeneralisedNewtonianAxisymmetricNavierStokesEquations::fill_in_generic_residual_contribution_axi_nst(), oomph::NavierStokesTractionElement< ELEMENT >::fill_in_generic_residual_contribution_fluid_traction(), oomph::LinearWaveFluxElement< ELEMENT >::fill_in_generic_residual_contribution_lin_wave_flux(), oomph::SphericalNavierStokesEquations::fill_in_generic_residual_contribution_spherical_nst(), oomph::RefineableSphericalNavierStokesEquations::fill_in_generic_residual_contribution_spherical_nst(), oomph::UnsteadyHeatFluxElement< ELEMENT >::fill_in_generic_residual_contribution_ust_heat_flux(), oomph::RefineableAxisymmetricNavierStokesEquations::get_dresidual_dnodal_coordinates(), oomph::RefineableGeneralisedNewtonianAxisymmetricNavierStokesEquations::get_dresidual_dnodal_coordinates(), oomph::AxisymmetricNavierStokesEquations::get_dresidual_dnodal_coordinates(), oomph::GeneralisedNewtonianAxisymmetricNavierStokesEquations::get_dresidual_dnodal_coordinates(), oomph::AdvectionDiffusionReactionEquations< NREAGENT, DIM >::get_wind_adv_diff_react(), oomph::PseudoBucklingRing::position(), oomph::RefineableNavierStokesTractionElement< ELEMENT >::refineable_fill_in_generic_residual_contribution_fluid_traction(), oomph::SolidICProblem::set_static_initial_condition(), oomph::TR::shift_time_values(), and oomph::PseudoBucklingRing::veloc().
◆ time_pt() [2/2]
|
inline |
Access function for the pointer to time (can't have a paranoid test for null pointers because this is used as a set function).
Definition at line 554 of file timesteppers.h.
◆ type()
|
inline |
Return string that indicates the type of the timestepper (e.g. "BDF", "Newmark", etc.)
Definition at line 465 of file timesteppers.h.
Referenced by oomph::SurfactantTransportInterfaceElement::dcdt_surface(), oomph::PolarNavierStokesEquations::du_dt_pnst(), oomph::SphericalNavierStokesEquations::du_dt_spherical_nst(), and oomph::SolidFiniteElement::fill_in_jacobian_for_newmark_accel().
◆ undo_make_steady()
|
inlinevirtual |
Reset the is_steady status of a specific TimeStepper to its default and re-assign the weights.
Reimplemented in oomph::ContinuationStorageScheme.
Definition at line 457 of file timesteppers.h.
Referenced by oomph::Problem::arc_length_step_solve_helper(), oomph::Problem::get_dvaluesdt(), oomph::Problem::solve_eigenproblem(), oomph::Problem::steady_newton_solve(), and oomph::SegregatableFSIProblem::steady_segregated_solve().
◆ update_predicted_time()
|
inline |
Set the time that the current predictions apply for, only needed for paranoid checks when doing Predict_by_explicit_step.
Definition at line 400 of file timesteppers.h.
Referenced by oomph::Problem::calculate_predictions().
◆ weight()
|
inlinevirtual |
Access function for j-th weight for the i-th derivative.
Reimplemented in oomph::Steady< NSTEPS >, and oomph::Steady< 0 >.
Definition at line 557 of file timesteppers.h.
Referenced by oomph::SurfactantTransportInterfaceElement::add_additional_residual_contributions_interface(), oomph::PoroelasticityEquations< 2 >::d2u_dt2(), oomph::AxisymmetricPoroelasticityEquations::d2u_dt2(), oomph::AxisymmetricLinearElasticityEquationsBase::d2u_dt2_axisymmetric_linear_elasticity(), oomph::LinearWaveEquations< DIM >::d2u_dt2_lin_wave(), oomph::LinearElasticityEquationsBase< DIM >::d2u_dt2_linear_elasticity(), oomph::AdvectionDiffusionReactionEquations< NREAGENT, DIM >::dc_dt_adv_diff_react(), oomph::SurfactantTransportInterfaceElement::dcdt_surface(), oomph::FSIAxisymFoepplvonKarmanElement< NNODE_1D, FLUID_ELEMENT >::dposition_dt(), oomph::Node::dposition_dt(), oomph::Node::dposition_gen_dt(), oomph::PoroelasticityEquations< 2 >::dq_edge_dt(), oomph::AxisymmetricPoroelasticityEquations::dq_edge_dt(), oomph::PoroelasticityEquations< 2 >::dq_internal_dt(), oomph::AxisymmetricPoroelasticityEquations::dq_internal_dt(), oomph::PoroelasticityEquations< 2 >::du_dt(), oomph::AxisymmetricPoroelasticityEquations::du_dt(), oomph::AdvectionDiffusionEquations< DIM >::du_dt_adv_diff(), oomph::AxisymAdvectionDiffusionEquations::du_dt_axi_adv_diff(), oomph::AxisymmetricNavierStokesEquations::du_dt_axi_nst(), oomph::GeneralisedNewtonianAxisymmetricNavierStokesEquations::du_dt_axi_nst(), oomph::AxisymmetricLinearElasticityEquationsBase::du_dt_axisymmetric_linear_elasticity(), oomph::GeneralisedAdvectionDiffusionEquations< DIM >::du_dt_cons_adv_diff(), oomph::du_dt_cons_axisym_adv_diff(), oomph::FluxTransportEquations< DIM >::du_dt_flux_transport(), oomph::LinearWaveEquations< DIM >::du_dt_lin_wave(), oomph::LinearisedAxisymmetricNavierStokesEquations::du_dt_linearised_axi_nst(), oomph::LinearisedNavierStokesEquations::du_dt_linearised_nst(), oomph::GeneralisedNewtonianNavierStokesEquations< DIM >::du_dt_nst(), oomph::NavierStokesEquations< DIM >::du_dt_nst(), oomph::PolarNavierStokesEquations::du_dt_pnst(), oomph::SphericalAdvectionDiffusionEquations::du_dt_spherical_adv_diff(), oomph::SphericalNavierStokesEquations::du_dt_spherical_nst(), oomph::UnsteadyHeatEquations< DIM >::du_dt_ust_heat(), oomph::WomersleyEquations< DIM >::du_dt_womersley(), oomph::Node::dx_dt(), oomph::Node::dx_gen_dt(), oomph::ODEElement::fill_in_contribution_to_jacobian(), oomph::AxisymmetricLinearElasticityEquations::fill_in_generic_contribution_to_residuals_axisymmetric_linear_elasticity(), oomph::AxisymmetricNavierStokesEquations::fill_in_generic_dresidual_contribution_axi_nst(), oomph::GeneralisedNewtonianAxisymmetricNavierStokesEquations::fill_in_generic_dresidual_contribution_axi_nst(), oomph::PoroelasticityEquations< 2 >::fill_in_generic_residual_contribution(), oomph::AxisymmetricPoroelasticityEquations::fill_in_generic_residual_contribution(), oomph::RefineableAxisymAdvectionDiffusionEquations::fill_in_generic_residual_contribution_axi_adv_diff(), oomph::AxisymAdvectionDiffusionEquations::fill_in_generic_residual_contribution_axi_adv_diff(), oomph::RefineableAxisymmetricNavierStokesEquations::fill_in_generic_residual_contribution_axi_nst(), oomph::RefineableGeneralisedNewtonianAxisymmetricNavierStokesEquations::fill_in_generic_residual_contribution_axi_nst(), oomph::AxisymmetricNavierStokesEquations::fill_in_generic_residual_contribution_axi_nst(), oomph::GeneralisedNewtonianAxisymmetricNavierStokesEquations::fill_in_generic_residual_contribution_axi_nst(), oomph::RefineableGeneralisedAxisymAdvectionDiffusionEquations::fill_in_generic_residual_contribution_cons_axisym_adv_diff(), oomph::LinearisedAxisymmetricNavierStokesEquations::fill_in_generic_residual_contribution_linearised_axi_nst(), oomph::RefineableLinearisedAxisymmetricNavierStokesEquations::fill_in_generic_residual_contribution_linearised_axi_nst(), oomph::RefineableSphericalAdvectionDiffusionEquations::fill_in_generic_residual_contribution_spherical_adv_diff(), oomph::SphericalAdvectionDiffusionEquations::fill_in_generic_residual_contribution_spherical_adv_diff(), oomph::SphericalNavierStokesEquations::fill_in_generic_residual_contribution_spherical_nst(), oomph::RefineableSphericalNavierStokesEquations::fill_in_generic_residual_contribution_spherical_nst(), oomph::SolidFiniteElement::fill_in_jacobian_for_newmark_accel(), oomph::RefineableAxisymmetricNavierStokesEquations::get_dresidual_dnodal_coordinates(), oomph::RefineableGeneralisedNewtonianAxisymmetricNavierStokesEquations::get_dresidual_dnodal_coordinates(), oomph::AxisymmetricNavierStokesEquations::get_dresidual_dnodal_coordinates(), oomph::GeneralisedNewtonianAxisymmetricNavierStokesEquations::get_dresidual_dnodal_coordinates(), oomph::ImmersedRigidBodyElement::get_residuals_rigid_body_generic(), oomph::Newmark< NSTEPS >::shift_time_positions(), oomph::NewmarkBDF< NSTEPS >::shift_time_positions(), and oomph::NewmarkBDF< NSTEPS >::shift_time_values().
◆ weights_pt()
|
inline |
Get a (const) pointer to the weights.
Definition at line 453 of file timesteppers.h.
Member Data Documentation
◆ Adaptive_Flag
|
protected |
Boolean variable to indicate whether the timestepping scheme can be adaptive.
Definition at line 235 of file timesteppers.h.
Referenced by oomph::IMRBase::IMRBase(), and oomph::TR::TR().
◆ Explicit_predictor_pt
|
protected |
Pointer to explicit time stepper to use as predictor if Predict_by_explicit_step is set. ??ds merge the two? predict by explicit if pointer is set?
Definition at line 255 of file timesteppers.h.
Referenced by ~TimeStepper().
◆ Is_steady
|
protected |
Bool to indicate if the timestepper is steady, i.e. its time-derivatives evaluate to zero. This status may be achieved temporarily by calling make_steady(). It can be reset to the appropriate default by the function undo_make_steady().
Definition at line 241 of file timesteppers.h.
Referenced by oomph::ContinuationStorageScheme::ContinuationStorageScheme(), oomph::IMRBase::IMRBase(), and oomph::ContinuationStorageScheme::undo_make_steady().
◆ Predict_by_explicit_step
|
protected |
Flag: is adaptivity done by taking a separate step using an ExplicitTimeStepper object?
Definition at line 250 of file timesteppers.h.
Referenced by oomph::IMRBase::IMRBase().
◆ Predicted_time
|
protected |
Store the time that the predicted values currently stored are at, to compare for paranoid checks.
Definition at line 259 of file timesteppers.h.
◆ Predictor_storage_index
|
protected |
The time-index in each Data object where predicted values are stored. -1 if not set.
Definition at line 263 of file timesteppers.h.
Referenced by oomph::BDF< NSTEPS >::calculate_predicted_positions(), oomph::BDF< NSTEPS >::calculate_predicted_values(), oomph::IMRBase::IMRBase(), oomph::BDF< NSTEPS >::temporal_error_in_position(), oomph::IMRBase::temporal_error_in_value(), and oomph::BDF< NSTEPS >::temporal_error_in_value().
◆ Shut_up_in_assign_initial_data_values
|
protected |
Boolean to indicate if the timestepper will output warnings when setting possibly an incorrect number of initial data values from function pointers.
Definition at line 246 of file timesteppers.h.
Referenced by oomph::Newmark< NSTEPS >::assign_initial_data_values().
◆ Time_pt
|
protected |
Pointer to discrete time storage scheme.
Definition at line 224 of file timesteppers.h.
Referenced by oomph::PeriodicOrbitTimeDiscretisation::assign_initial_data_values(), oomph::Newmark< NSTEPS >::assign_initial_data_values(), oomph::TR::set_error_weights(), oomph::BDF< NSTEPS >::set_error_weights(), oomph::BDF< NSTEPS >::set_predictor_weights(), oomph::TR::set_predictor_weights(), oomph::BDF< NSTEPS >::set_weights(), oomph::TR::set_weights(), oomph::IMR::set_weights(), oomph::IMRByBDF::set_weights(), oomph::Newmark< NSTEPS >::set_weights(), oomph::NewmarkBDF< NSTEPS >::set_weights(), and oomph::PeriodicOrbitEquations::time_pt().
◆ Type
|
protected |
String that indicates the type of the timestepper (e.g. "BDF", "Newmark", etc.)
Definition at line 231 of file timesteppers.h.
Referenced by oomph::ContinuationStorageScheme::ContinuationStorageScheme(), oomph::IMRBase::IMRBase(), and oomph::PeriodicOrbitTimeDiscretisation::PeriodicOrbitTimeDiscretisation().
◆ Weight
|
protected |
Storage for the weights associated with the timestepper.
Definition at line 227 of file timesteppers.h.
Referenced by oomph::Newmark< NSTEPS >::assign_initial_data_values(), oomph::Newmark< NSTEPS >::assign_initial_data_values_stage2(), oomph::IMRBase::IMRBase(), oomph::ContinuationStorageScheme::modify_storage(), oomph::PeriodicOrbitEquations::set_timestepper_weights(), oomph::BDF< NSTEPS >::set_weights(), oomph::TR::set_weights(), oomph::IMR::set_weights(), oomph::IMRByBDF::set_weights(), oomph::Newmark< NSTEPS >::set_weights(), oomph::NewmarkBDF< NSTEPS >::set_weights(), oomph::IMRBase::shift_time_positions(), and oomph::TR::TR().
The documentation for this class was generated from the following files:
