Preconditioner base class. Gives an interface to call all other preconditioners through and stores the matrix and communicator pointers. All preconditioners should be derived from this class. More...

#include <preconditioner.h>

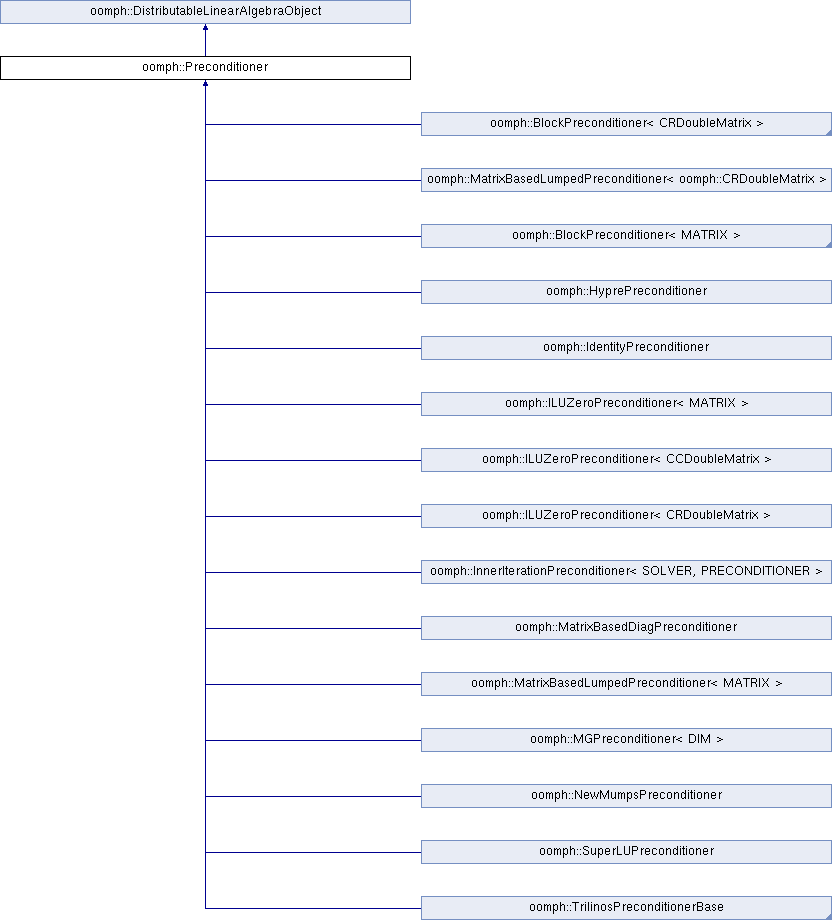

Inheritance diagram for oomph::Preconditioner:

Public Member Functions
	Preconditioner ()
	Constructor. More...

	Preconditioner (const Preconditioner &)
	Broken copy constructor. More...

void	operator= (const Preconditioner &)
	Broken assignment operator. More...

virtual	~Preconditioner ()
	Destructor (empty) More...

virtual void	preconditioner_solve (const DoubleVector &r, DoubleVector &z)=0
	Apply the preconditioner. Pure virtual generic interface function. This method should apply the preconditioner operator to the vector r and return the vector z. More...

void	setup (DoubleMatrixBase *matrix_pt)
	Setup the preconditioner: store the matrix pointer and the communicator pointer then call preconditioner specific setup() function. More...

void	setup (const Problem problem_pt, DoubleMatrixBase matrix_pt)
	Compatability layer for old preconditioners where problem pointers were needed. The problem pointer is only used to get a communicator pointer. More...

virtual void	setup ()=0
	Setup the preconditioner. Pure virtual generic interface function. More...

virtual void	clean_up_memory ()
	Clean up memory (empty). Generic interface function. More...

virtual DoubleMatrixBase *	matrix_pt () const
	Get function for matrix pointer. More...

virtual void	set_matrix_pt (DoubleMatrixBase *matrix_pt)
	Set the matrix pointer. More...

virtual const OomphCommunicator *	comm_pt () const
	Get function for comm pointer. More...

virtual void	set_comm_pt (const OomphCommunicator *const comm_pt)
	Set the communicator pointer. More...

double	setup_time () const
	Returns the time to setup the preconditioner. More...

virtual void	turn_into_subsidiary_block_preconditioner (BlockPreconditioner< CRDoubleMatrix > *master_block_prec_pt, const Vector< unsigned > &doftype_in_master_preconditioner_coarse)

virtual void	turn_into_subsidiary_block_preconditioner (BlockPreconditioner< CRDoubleMatrix > *master_block_prec_pt, const Vector< unsigned > &doftype_in_master_preconditioner_coarse, const Vector< Vector< unsigned > > &doftype_coarsen_map_coarse)

Public Member Functions inherited from oomph::DistributableLinearAlgebraObject
	DistributableLinearAlgebraObject ()
	Default constructor - create a distribution. More...

	DistributableLinearAlgebraObject (const DistributableLinearAlgebraObject &matrix)
	Broken copy constructor. More...

void	operator= (const DistributableLinearAlgebraObject &)
	Broken assignment operator. More...

virtual	~DistributableLinearAlgebraObject ()
	Destructor. More...

LinearAlgebraDistribution *	distribution_pt () const
	access to the LinearAlgebraDistribution More...

unsigned	nrow () const
	access function to the number of global rows. More...

unsigned	nrow_local () const
	access function for the num of local rows on this processor. More...

unsigned	nrow_local (const unsigned &p) const
	access function for the num of local rows on this processor. More...

unsigned	first_row () const
	access function for the first row on this processor More...

unsigned	first_row (const unsigned &p) const
	access function for the first row on this processor More...

bool	distributed () const
	distribution is serial or distributed More...

bool	distribution_built () const

void	build_distribution (const LinearAlgebraDistribution *const dist_pt)
	setup the distribution of this distributable linear algebra object More...

void	build_distribution (const LinearAlgebraDistribution &dist)
	setup the distribution of this distributable linear algebra object More...

Private Attributes
DoubleMatrixBase *	Matrix_pt
	Storage for a pointer to the matrix. More...

const OomphCommunicator *	Comm_pt
	Storage for a pointer to the communicator. Null if the preconditioner should not be distributed. More...

double	Setup_time
	The time it takes to set up this preconditioner. More...

Additional Inherited Members
Protected Member Functions inherited from oomph::DistributableLinearAlgebraObject
void	clear_distribution ()
	clear the distribution of this distributable linear algebra object More...

Detailed Description

Preconditioner base class. Gives an interface to call all other preconditioners through and stores the matrix and communicator pointers. All preconditioners should be derived from this class.

Definition at line 58 of file preconditioner.h.

Constructor & Destructor Documentation

◆ Preconditioner() [1/2]

oomph::Preconditioner::Preconditioner ( )

inline

Constructor.

Definition at line 64 of file preconditioner.h.

◆ Preconditioner() [2/2]

oomph::Preconditioner::Preconditioner ( const Preconditioner & )

inline

Broken copy constructor.

Definition at line 67 of file preconditioner.h.

References oomph::BrokenCopy::broken_copy().

◆ ~Preconditioner()

virtual oomph::Preconditioner::~Preconditioner ( )

inlinevirtual

Destructor (empty)

Definition at line 79 of file preconditioner.h.

References preconditioner_solve().

Member Function Documentation

◆ clean_up_memory()

virtual void oomph::Preconditioner::clean_up_memory ( )

inlinevirtual

Clean up memory (empty). Generic interface function.

Definition at line 127 of file preconditioner.h.

Referenced by oomph::PseudoElasticFSIPreconditioner::clean_up_memory(), oomph::TrilinosAztecOOSolver::clean_up_memory(), and oomph::MatrixBasedLumpedPreconditioner< oomph::CRDoubleMatrix >::~MatrixBasedLumpedPreconditioner().

◆ comm_pt()

virtual const OomphCommunicator* oomph::Preconditioner::comm_pt ( ) const

inlinevirtual

Get function for comm pointer.

Definition at line 149 of file preconditioner.h.

References Comm_pt.

Referenced by oomph::PressureBasedSolidLSCPreconditioner::assemble_mass_matrix_diagonal(), set_comm_pt(), oomph::MatrixBasedDiagPreconditioner::setup(), oomph::MatrixBasedLumpedPreconditioner< oomph::CRDoubleMatrix >::setup(), oomph::IdentityPreconditioner::setup(), oomph::ILUZeroPreconditioner< CCDoubleMatrix >::setup(), and oomph::InnerIterationPreconditioner< SOLVER, PRECONDITIONER >::setup().

◆ matrix_pt()

virtual DoubleMatrixBase* oomph::Preconditioner::matrix_pt ( ) const

inlinevirtual

Get function for matrix pointer.

Reimplemented in oomph::BlockPreconditioner< MATRIX >, and oomph::BlockPreconditioner< CRDoubleMatrix >.

Definition at line 130 of file preconditioner.h.

References Matrix_pt.

Referenced by oomph::BlockPreconditioner< CRDoubleMatrix >::matrix_pt(), set_matrix_pt(), oomph::SuperLUPreconditioner::setup(), oomph::MatrixBasedDiagPreconditioner::setup(), setup(), oomph::TrilinosPreconditionerBase::setup(), oomph::MatrixBasedLumpedPreconditioner< oomph::CRDoubleMatrix >::setup(), oomph::IdentityPreconditioner::setup(), oomph::ILUZeroPreconditioner< CCDoubleMatrix >::setup(), oomph::ILUZeroPreconditioner< CRDoubleMatrix >::setup(), and oomph::InnerIterationPreconditioner< SOLVER, PRECONDITIONER >::setup().

◆ operator=()

void oomph::Preconditioner::operator= ( const Preconditioner & )

inline

Broken assignment operator.

Definition at line 73 of file preconditioner.h.

References oomph::BrokenCopy::broken_assign().

◆ preconditioner_solve()

virtual void oomph::Preconditioner::preconditioner_solve	(	const DoubleVector &	r,
		DoubleVector &	z
	)

pure virtual

Apply the preconditioner. Pure virtual generic interface function. This method should apply the preconditioner operator to the vector r and return the vector z.

Implemented in oomph::HelmholtzGMRESMG< MATRIX >, oomph::HyprePreconditioner, oomph::PseudoElasticPreconditionerScalingHelperOld, oomph::NavierStokesSchurComplementPreconditioner, oomph::MGPreconditioner< DIM >, oomph::PseudoElasticPreconditionerSubsidiaryBlockPreconditionerOld, oomph::DummyBlockPreconditioner< MATRIX >, oomph::ExactBlockPreconditioner< MATRIX >, oomph::SimpleFSIPreconditioner< MATRIX >, oomph::PseudoElasticPreconditionerSubsidiaryPreconditionerOld, oomph::BlockTriangularPreconditioner< MATRIX >, oomph::InnerIterationPreconditioner< SOLVER, PRECONDITIONER >, oomph::HelmholtzMGPreconditioner< DIM >, oomph::PseudoElasticPreconditionerOld, oomph::BlockDiagonalPreconditioner< MATRIX >, oomph::ILUZeroPreconditioner< CRDoubleMatrix >, oomph::InexactSubBiharmonicPreconditioner, oomph::NewMumpsPreconditioner, oomph::ILUZeroPreconditioner< CCDoubleMatrix >, oomph::IdentityPreconditioner, oomph::ExactSubBiharmonicPreconditioner, oomph::PressureBasedSolidLSCPreconditioner, oomph::LagrangeEnforcedFlowPreconditioner, oomph::FSIPreconditioner, oomph::PseudoElasticPreconditioner, oomph::PseudoElasticFSIPreconditioner, oomph::BiharmonicPreconditioner, oomph::MatrixBasedLumpedPreconditioner< MATRIX >, oomph::MatrixBasedLumpedPreconditioner< oomph::CRDoubleMatrix >, oomph::TrilinosPreconditionerBase, oomph::SuperLUPreconditioner, and oomph::MatrixBasedDiagPreconditioner.

Referenced by oomph::OomphLibPreconditionerEpetraOperator::ApplyInverse(), oomph::PseudoElasticFSIPreconditioner::preconditioner_solve(), oomph::FSIPreconditioner::preconditioner_solve(), oomph::PressureBasedSolidLSCPreconditioner::preconditioner_solve(), oomph::GMRES< MATRIX >::solve_helper(), oomph::HelmholtzGMRESMG< MATRIX >::solve_helper(), oomph::HelmholtzFGMRESMG< MATRIX >::solve_helper(), oomph::GMRES< MATRIX >::update(), oomph::HelmholtzGMRESMG< MATRIX >::update(), and ~Preconditioner().

◆ set_comm_pt()

virtual void oomph::Preconditioner::set_comm_pt ( const OomphCommunicator *const comm_pt )

inlinevirtual

Set the communicator pointer.

Definition at line 171 of file preconditioner.h.

References comm_pt(), and Comm_pt.

Referenced by setup().

◆ set_matrix_pt()

virtual void oomph::Preconditioner::set_matrix_pt ( DoubleMatrixBase * matrix_pt )

inlinevirtual

Set the matrix pointer.

Definition at line 146 of file preconditioner.h.

References matrix_pt(), and Matrix_pt.

Referenced by setup(), and oomph::TrilinosAztecOOSolver::solver_setup().

◆ setup() [1/3]

void oomph::Preconditioner::setup ( DoubleMatrixBase * matrix_pt )

inline

Setup the preconditioner: store the matrix pointer and the communicator pointer then call preconditioner specific setup() function.

Definition at line 90 of file preconditioner.h.

References oomph::LinearAlgebraDistribution::communicator_pt(), oomph::DistributableLinearAlgebraObject::distribution_pt(), matrix_pt(), set_comm_pt(), set_matrix_pt(), setup(), Setup_time, and oomph::TimingHelpers::timer().

Referenced by oomph::PseudoElasticFSIPreconditioner::setup(), oomph::FSIPreconditioner::setup(), oomph::LagrangeEnforcedFlowPreconditioner::setup(), oomph::PressureBasedSolidLSCPreconditioner::setup(), oomph::NavierStokesSchurComplementPreconditioner::setup(), oomph::GMRES< MATRIX >::solve_helper(), oomph::HelmholtzGMRESMG< MATRIX >::solve_helper(), oomph::HelmholtzFGMRESMG< MATRIX >::solve_helper(), and oomph::TrilinosAztecOOSolver::solver_setup().

◆ setup() [2/3]

void oomph::Preconditioner::setup	(	const Problem *	problem_pt,
		DoubleMatrixBase *	matrix_pt
	)

inline

Compatability layer for old preconditioners where problem pointers were needed. The problem pointer is only used to get a communicator pointer.

Definition at line 116 of file preconditioner.h.

References oomph::ObsoleteCode::obsolete(), and setup().

◆ setup() [3/3]

virtual void oomph::Preconditioner::setup ( )

pure virtual

Setup the preconditioner. Pure virtual generic interface function.

Referenced by oomph::NavierStokesSchurComplementPreconditioner::disable_accept_non_NavierStokesElementWithDiagonalMassMatrices_elements(), oomph::HelmholtzMGPreconditioner< DIM >::iterations(), oomph::MatrixBasedLumpedPreconditioner< oomph::CRDoubleMatrix >::operator=(), setup(), oomph::PseudoElasticFSIPreconditioner::setup(), and oomph::PseudoElasticPreconditionerSubsidiaryBlockPreconditionerOld::setup().

◆ setup_time()

double oomph::Preconditioner::setup_time ( ) const

inline

Returns the time to setup the preconditioner.

Definition at line 175 of file preconditioner.h.

References Setup_time, and turn_into_subsidiary_block_preconditioner().

Referenced by oomph::FSIPreconditioner::setup().

◆ turn_into_subsidiary_block_preconditioner() [1/2]

virtual void oomph::Preconditioner::turn_into_subsidiary_block_preconditioner	(	BlockPreconditioner< CRDoubleMatrix > *	master_block_prec_pt,
		const Vector< unsigned > &	doftype_in_master_preconditioner_coarse
	)

inlinevirtual

Virtual interface function for making a preconditioner a subsidiary of a block preconditioner. By default nothing is needed, but if this preconditioner is also a block preconditioner then things need to happen. There's an assumption here that the block preconditioner will be in CR form but since that assumption is hard coded all over BlockPreconditioner we're safe.

Reimplemented in oomph::BlockPreconditioner< CRDoubleMatrix >.

Definition at line 185 of file preconditioner.h.

Referenced by setup_time().

◆ turn_into_subsidiary_block_preconditioner() [2/2]

virtual void oomph::Preconditioner::turn_into_subsidiary_block_preconditioner	(	BlockPreconditioner< CRDoubleMatrix > *	master_block_prec_pt,
		const Vector< unsigned > &	doftype_in_master_preconditioner_coarse,
		const Vector< Vector< unsigned > > &	doftype_coarsen_map_coarse
	)

inlinevirtual

Virtual interface function for making a preconditioner a subsidiary of a block preconditioner. By default nothing is needed, but if this preconditioner is also a block preconditioner then things need to happen. Version for coarsening dof-types.

Reimplemented in oomph::BlockPreconditioner< CRDoubleMatrix >.

Definition at line 193 of file preconditioner.h.

Member Data Documentation

◆ Comm_pt

const OomphCommunicator* oomph::Preconditioner::Comm_pt

private

Storage for a pointer to the communicator. Null if the preconditioner should not be distributed.

Definition at line 204 of file preconditioner.h.

Referenced by comm_pt(), and set_comm_pt().

◆ Matrix_pt

DoubleMatrixBase* oomph::Preconditioner::Matrix_pt

private

Storage for a pointer to the matrix.

Definition at line 200 of file preconditioner.h.

Referenced by matrix_pt(), and set_matrix_pt().

◆ Setup_time

double oomph::Preconditioner::Setup_time

private

The time it takes to set up this preconditioner.

Definition at line 207 of file preconditioner.h.

Referenced by setup(), and setup_time().

The documentation for this class was generated from the following file:

preconditioner.h
