Matrix-based lumped preconditioner. More...

#include <general_purpose_preconditioners.h>

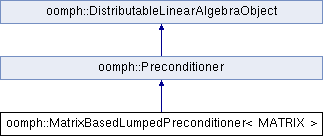

Inheritance diagram for oomph::MatrixBasedLumpedPreconditioner< MATRIX >:

Public Member Functions
	MatrixBasedLumpedPreconditioner ()
	Constructor. More...

	~MatrixBasedLumpedPreconditioner ()
	Destructor. More...

	MatrixBasedLumpedPreconditioner (const MatrixBasedDiagPreconditioner &)
	Broken copy constructor. More...

void	operator= (const MatrixBasedLumpedPreconditioner &)
	Broken assignment operator. More...

void	preconditioner_solve (const DoubleVector &r, DoubleVector &z)
	Apply preconditioner to z, i.e. z=D^-1. More...

void	setup ()
	Setup the preconditioner (store diagonal) from the fully assembled matrix. Problem pointer is ignored. More...

bool	positive_matrix () const
	Access function to the Positive_matrix which indicates whether lumped matrix was positive. More...

double *	inverse_lumped_vector_pt ()
	Access function to the inverse of the lumped vector assembled in the preconditioner setup routine. More...

unsigned &	nrow ()
	Access function to number of rows for this preconditioner. More...

void	clean_up_memory ()
	clean up memory - just delete the inverse lumped vector More...

template<>
void	setup ()
	Setup the lumped preconditioner. Specialisation for CCDoubleMatrix. More...

template<>
void	setup ()
	Setup the lumped preconditioner. Specialisation for CRDoubleMatrix. More...

Public Member Functions inherited from oomph::Preconditioner
	Preconditioner ()
	Constructor. More...

	Preconditioner (const Preconditioner &)
	Broken copy constructor. More...

void	operator= (const Preconditioner &)
	Broken assignment operator. More...

virtual	~Preconditioner ()
	Destructor (empty) More...

void	setup (DoubleMatrixBase *matrix_pt)
	Setup the preconditioner: store the matrix pointer and the communicator pointer then call preconditioner specific setup() function. More...

void	setup (const Problem problem_pt, DoubleMatrixBase matrix_pt)
	Compatability layer for old preconditioners where problem pointers were needed. The problem pointer is only used to get a communicator pointer. More...

virtual DoubleMatrixBase *	matrix_pt () const
	Get function for matrix pointer. More...

virtual void	set_matrix_pt (DoubleMatrixBase *matrix_pt)
	Set the matrix pointer. More...

virtual const OomphCommunicator *	comm_pt () const
	Get function for comm pointer. More...

virtual void	set_comm_pt (const OomphCommunicator *const comm_pt)
	Set the communicator pointer. More...

double	setup_time () const
	Returns the time to setup the preconditioner. More...

virtual void	turn_into_subsidiary_block_preconditioner (BlockPreconditioner< CRDoubleMatrix > *master_block_prec_pt, const Vector< unsigned > &doftype_in_master_preconditioner_coarse)

virtual void	turn_into_subsidiary_block_preconditioner (BlockPreconditioner< CRDoubleMatrix > *master_block_prec_pt, const Vector< unsigned > &doftype_in_master_preconditioner_coarse, const Vector< Vector< unsigned > > &doftype_coarsen_map_coarse)

Public Member Functions inherited from oomph::DistributableLinearAlgebraObject
	DistributableLinearAlgebraObject ()
	Default constructor - create a distribution. More...

	DistributableLinearAlgebraObject (const DistributableLinearAlgebraObject &matrix)
	Broken copy constructor. More...

void	operator= (const DistributableLinearAlgebraObject &)
	Broken assignment operator. More...

virtual	~DistributableLinearAlgebraObject ()
	Destructor. More...

LinearAlgebraDistribution *	distribution_pt () const
	access to the LinearAlgebraDistribution More...

unsigned	nrow () const
	access function to the number of global rows. More...

unsigned	nrow_local () const
	access function for the num of local rows on this processor. More...

unsigned	nrow_local (const unsigned &p) const
	access function for the num of local rows on this processor. More...

unsigned	first_row () const
	access function for the first row on this processor More...

unsigned	first_row (const unsigned &p) const
	access function for the first row on this processor More...

bool	distributed () const
	distribution is serial or distributed More...

bool	distribution_built () const

void	build_distribution (const LinearAlgebraDistribution *const dist_pt)
	setup the distribution of this distributable linear algebra object More...

void	build_distribution (const LinearAlgebraDistribution &dist)
	setup the distribution of this distributable linear algebra object More...

Private Attributes
double *	Inv_lumped_diag_pt
	Vector of inverse diagonal entries. More...

bool	Positive_matrix

unsigned	Nrow

Additional Inherited Members
Protected Member Functions inherited from oomph::DistributableLinearAlgebraObject
void	clear_distribution ()
	clear the distribution of this distributable linear algebra object More...

Detailed Description

template<typename MATRIX>
class oomph::MatrixBasedLumpedPreconditioner< MATRIX >

Matrix-based lumped preconditioner.

Definition at line 95 of file general_purpose_preconditioners.h.

Constructor & Destructor Documentation

◆ MatrixBasedLumpedPreconditioner() [1/2]

template<typename MATRIX>

oomph::MatrixBasedLumpedPreconditioner< MATRIX >::MatrixBasedLumpedPreconditioner ( )

inline

Constructor.

Definition at line 100 of file general_purpose_preconditioners.h.

◆ ~MatrixBasedLumpedPreconditioner()

template<typename MATRIX>

oomph::MatrixBasedLumpedPreconditioner< MATRIX >::~MatrixBasedLumpedPreconditioner ( )

inline

Destructor.

Definition at line 110 of file general_purpose_preconditioners.h.

◆ MatrixBasedLumpedPreconditioner() [2/2]

template<typename MATRIX>

oomph::MatrixBasedLumpedPreconditioner< MATRIX >::MatrixBasedLumpedPreconditioner ( const MatrixBasedDiagPreconditioner & )

inline

Broken copy constructor.

Definition at line 116 of file general_purpose_preconditioners.h.

Member Function Documentation

◆ clean_up_memory()

template<typename MATRIX>

void oomph::MatrixBasedLumpedPreconditioner< MATRIX >::clean_up_memory ( )

inlinevirtual

clean up memory - just delete the inverse lumped vector

Reimplemented from oomph::Preconditioner.

Definition at line 178 of file general_purpose_preconditioners.h.

◆ inverse_lumped_vector_pt()

template<typename MATRIX>

double* oomph::MatrixBasedLumpedPreconditioner< MATRIX >::inverse_lumped_vector_pt ( )

inline

Access function to the inverse of the lumped vector assembled in the preconditioner setup routine.

paranoid check that vector has been created

Definition at line 158 of file general_purpose_preconditioners.h.

◆ nrow()

template<typename MATRIX>

unsigned& oomph::MatrixBasedLumpedPreconditioner< MATRIX >::nrow ( )

inline

Access function to number of rows for this preconditioner.

Definition at line 175 of file general_purpose_preconditioners.h.

◆ operator=()

template<typename MATRIX>

void oomph::MatrixBasedLumpedPreconditioner< MATRIX >::operator= ( const MatrixBasedLumpedPreconditioner< MATRIX > & )

inline

Broken assignment operator.

Definition at line 122 of file general_purpose_preconditioners.h.

◆ positive_matrix()

template<typename MATRIX>

bool oomph::MatrixBasedLumpedPreconditioner< MATRIX >::positive_matrix ( ) const

inline

Access function to the Positive_matrix which indicates whether lumped matrix was positive.

paranoid check that preconditioner has been setup

Definition at line 140 of file general_purpose_preconditioners.h.

◆ preconditioner_solve()

template<typename MATRIX >

void oomph::MatrixBasedLumpedPreconditioner< MATRIX >::preconditioner_solve	(	const DoubleVector &	r,
		DoubleVector &	z
	)

virtual

Apply preconditioner to z, i.e. z=D^-1.

Apply preconditioner: Multiply r by the inverse of the lumped matrix.

Implements oomph::Preconditioner.

Definition at line 279 of file general_purpose_preconditioners.cc.

◆ setup() [1/3]

template<typename MATRIX>

void oomph::MatrixBasedLumpedPreconditioner< MATRIX >::setup ( )

virtual

Setup the preconditioner (store diagonal) from the fully assembled matrix. Problem pointer is ignored.

Implements oomph::Preconditioner.

Referenced by oomph::MatrixBasedDiagPreconditioner::preconditioner_solve(), oomph::MatrixBasedLumpedPreconditioner< oomph::CRDoubleMatrix >::setup(), and oomph::InexactSubBiharmonicPreconditioner::setup().

◆ setup() [2/3]

template<>

void oomph::MatrixBasedLumpedPreconditioner< CCDoubleMatrix >::setup ( )

virtual

Setup the lumped preconditioner. Specialisation for CCDoubleMatrix.

Implements oomph::Preconditioner.

Definition at line 176 of file general_purpose_preconditioners.cc.

◆ setup() [3/3]

template<>

void oomph::MatrixBasedLumpedPreconditioner< CRDoubleMatrix >::setup ( )

virtual

Setup the lumped preconditioner. Specialisation for CRDoubleMatrix.

Implements oomph::Preconditioner.

Definition at line 228 of file general_purpose_preconditioners.cc.

Member Data Documentation

◆ Inv_lumped_diag_pt

template<typename MATRIX>

double* oomph::MatrixBasedLumpedPreconditioner< MATRIX >::Inv_lumped_diag_pt

private

Vector of inverse diagonal entries.

Definition at line 187 of file general_purpose_preconditioners.h.

◆ Nrow

template<typename MATRIX>

unsigned oomph::MatrixBasedLumpedPreconditioner< MATRIX >::Nrow

private

Definition at line 193 of file general_purpose_preconditioners.h.

◆ Positive_matrix

template<typename MATRIX>

bool oomph::MatrixBasedLumpedPreconditioner< MATRIX >::Positive_matrix

private

Definition at line 190 of file general_purpose_preconditioners.h.
