#include <explicit_timesteppers.h>

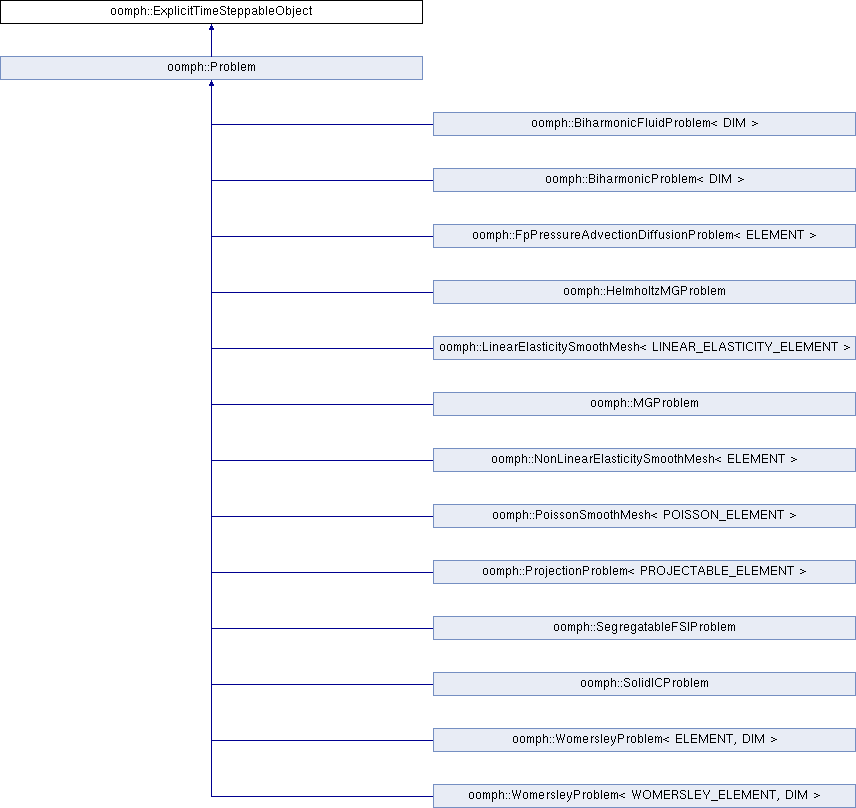

Inheritance diagram for oomph::ExplicitTimeSteppableObject:

Public Member Functions
	ExplicitTimeSteppableObject ()
	Empty constructor. More...

	ExplicitTimeSteppableObject (const ExplicitTimeSteppableObject &)
	Broken copy constructor. More...

void	operator= (const ExplicitTimeSteppableObject &)
	Broken assignment operator. More...

virtual	~ExplicitTimeSteppableObject ()
	Empty destructor. More...

virtual void	get_dvaluesdt (DoubleVector &minv_res)
	A single virtual function that returns the residuals vector multiplied by the inverse mass matrix. More...

virtual void	get_dofs (DoubleVector &dofs) const
	Function that gets the values of the dofs in the object. More...

virtual void	get_dofs (const unsigned &t, DoubleVector &dofs) const
	Function that gets the history values of the dofs in the object. More...

virtual void	set_dofs (const DoubleVector &dofs)
	Function that sets the values of the dofs in the object. More...

virtual void	add_to_dofs (const double &lambda, const DoubleVector &increment_dofs)
	Function that adds the values to the dofs. More...

virtual void	actions_before_explicit_stage ()
	Empty virtual function to do anything needed before a stage of an explicit time step (Runge-Kutta steps contain multiple stages per time step, most others only contain one). More...

virtual void	actions_after_explicit_stage ()
	Empty virtual function that should be overloaded to update and slaved data or boundary conditions that should be advanced after each stage of an explicit time step (Runge-Kutta steps contain multiple stages per time step, most others only contain one). More...

virtual void	actions_before_explicit_timestep ()
	Empty virtual function that can be overloaded to do anything needed before an explicit step. More...

virtual void	actions_after_explicit_timestep ()
	Empty virtual function that can be overloaded to do anything needed after an explicit step. More...

virtual double &	time ()
	Broken virtual function that should be overloaded to return access to the local time in the object. More...

virtual Time *	time_pt () const
	Virtual function that should be overloaded to return a pointer to a Time object. More...

Static Private Attributes
static double	Dummy_time_value = 0.0
	Dummy value of time always set to zero. More...

Detailed Description

Class for objects than can be advanced in time by an Explicit Timestepper. WARNING: For explicit time stepping to work the object's residual function (as used by get_inverse_mass_matrix_times_residuals(..)) MUST be in the form r = f(t, u) - [timestepper approximation to dudt]! Standard implicit time stepping will work with plenty of residuals that don't fit into this form. Some examples where implicit time stepping will work fine but explicit will fail: 1) The negation of the above formula, this implementation will end up using dudt = - f(u,t). 2) A residual which is implicit or non-linear in dudt, such as r = dudt

u x dudt.

Definition at line 69 of file explicit_timesteppers.h.

Constructor & Destructor Documentation

◆ ExplicitTimeSteppableObject() [1/2]

oomph::ExplicitTimeSteppableObject::ExplicitTimeSteppableObject ( )

inline

Empty constructor.

Definition at line 76 of file explicit_timesteppers.h.

◆ ExplicitTimeSteppableObject() [2/2]

oomph::ExplicitTimeSteppableObject::ExplicitTimeSteppableObject ( const ExplicitTimeSteppableObject & )

inline

Broken copy constructor.

Definition at line 79 of file explicit_timesteppers.h.

References oomph::BrokenCopy::broken_copy().

◆ ~ExplicitTimeSteppableObject()

virtual oomph::ExplicitTimeSteppableObject::~ExplicitTimeSteppableObject ( )

inlinevirtual

Empty destructor.

Definition at line 91 of file explicit_timesteppers.h.

References add_to_dofs(), get_dofs(), get_dvaluesdt(), set_dofs(), and t.

Member Function Documentation

◆ actions_after_explicit_stage()

virtual void oomph::ExplicitTimeSteppableObject::actions_after_explicit_stage ( )

inlinevirtual

Empty virtual function that should be overloaded to update and slaved data or boundary conditions that should be advanced after each stage of an explicit time step (Runge-Kutta steps contain multiple stages per time step, most others only contain one).

Definition at line 119 of file explicit_timesteppers.h.

Referenced by oomph::Euler::timestep(), oomph::RungeKutta< ORDER >::timestep(), oomph::EBDF3::timestep(), and oomph::LowStorageRungeKutta< ORDER >::timestep().

◆ actions_after_explicit_timestep()

virtual void oomph::ExplicitTimeSteppableObject::actions_after_explicit_timestep ( )

inlinevirtual

Empty virtual function that can be overloaded to do anything needed after an explicit step.

Reimplemented in oomph::Problem.

Definition at line 127 of file explicit_timesteppers.h.

References time(), and time_pt().

Referenced by oomph::Euler::timestep(), oomph::RungeKutta< ORDER >::timestep(), oomph::EBDF3::timestep(), and oomph::LowStorageRungeKutta< ORDER >::timestep().

◆ actions_before_explicit_stage()

virtual void oomph::ExplicitTimeSteppableObject::actions_before_explicit_stage ( )

inlinevirtual

Empty virtual function to do anything needed before a stage of an explicit time step (Runge-Kutta steps contain multiple stages per time step, most others only contain one).

Definition at line 113 of file explicit_timesteppers.h.

Referenced by oomph::Euler::timestep(), oomph::RungeKutta< ORDER >::timestep(), oomph::EBDF3::timestep(), and oomph::LowStorageRungeKutta< ORDER >::timestep().

◆ actions_before_explicit_timestep()

virtual void oomph::ExplicitTimeSteppableObject::actions_before_explicit_timestep ( )

inlinevirtual

Empty virtual function that can be overloaded to do anything needed before an explicit step.

Reimplemented in oomph::Problem.

Definition at line 123 of file explicit_timesteppers.h.

Referenced by oomph::Euler::timestep(), oomph::RungeKutta< ORDER >::timestep(), oomph::EBDF3::timestep(), and oomph::LowStorageRungeKutta< ORDER >::timestep().

◆ add_to_dofs()

void oomph::ExplicitTimeSteppableObject::add_to_dofs	(	const double &	lambda,
		const DoubleVector &	increment_dofs
	)

virtual

Function that adds the values to the dofs.

Function that adds the lambda multiplied by the increment_dofs vector to the dofs in the object

Reimplemented in oomph::Problem.

Definition at line 124 of file explicit_timesteppers.cc.

Referenced by oomph::Euler::timestep(), oomph::RungeKutta< ORDER >::timestep(), oomph::LowStorageRungeKutta< ORDER >::timestep(), and ~ExplicitTimeSteppableObject().

◆ get_dofs() [1/2]

void oomph::ExplicitTimeSteppableObject::get_dofs ( DoubleVector & dofs ) const

virtual

Function that gets the values of the dofs in the object.

Function that should get the values of the dofs in the object.

Reimplemented in oomph::Problem.

Definition at line 66 of file explicit_timesteppers.cc.

Referenced by oomph::RungeKutta< ORDER >::timestep(), oomph::EBDF3::timestep(), and ~ExplicitTimeSteppableObject().

◆ get_dofs() [2/2]

void oomph::ExplicitTimeSteppableObject::get_dofs	(	const unsigned &	t,
		DoubleVector &	dofs
	)		const

virtual

Function that gets the history values of the dofs in the object.

Function that should get the values of the dofs in the object.

Reimplemented in oomph::Problem.

Definition at line 85 of file explicit_timesteppers.cc.

◆ get_dvaluesdt()

void oomph::ExplicitTimeSteppableObject::get_dvaluesdt ( DoubleVector & minv_res )

virtual

A single virtual function that returns the residuals vector multiplied by the inverse mass matrix.

Reimplemented in oomph::Problem.

Definition at line 46 of file explicit_timesteppers.cc.

Referenced by oomph::Euler::timestep(), oomph::RungeKutta< ORDER >::timestep(), oomph::EBDF3::timestep(), oomph::LowStorageRungeKutta< ORDER >::timestep(), and ~ExplicitTimeSteppableObject().

◆ operator=()

void oomph::ExplicitTimeSteppableObject::operator= ( const ExplicitTimeSteppableObject & )

inline

Broken assignment operator.

Definition at line 85 of file explicit_timesteppers.h.

References oomph::BrokenCopy::broken_assign().

◆ set_dofs()

void oomph::ExplicitTimeSteppableObject::set_dofs ( const DoubleVector & dofs )

virtual

Function that sets the values of the dofs in the object.

Reimplemented in oomph::Problem.

Definition at line 105 of file explicit_timesteppers.cc.

Referenced by oomph::RungeKutta< ORDER >::timestep(), oomph::EBDF3::timestep(), and ~ExplicitTimeSteppableObject().

◆ time()

double & oomph::ExplicitTimeSteppableObject::time ( )

virtual

Broken virtual function that should be overloaded to return access to the local time in the object.

Virtual function that should be overloaded to return access to the local time in the object.

Reimplemented in oomph::Problem.

Definition at line 147 of file explicit_timesteppers.cc.

References Dummy_time_value.

Referenced by actions_after_explicit_timestep(), oomph::Euler::timestep(), oomph::RungeKutta< ORDER >::timestep(), oomph::EBDF3::timestep(), and oomph::LowStorageRungeKutta< ORDER >::timestep().

◆ time_pt()

Time * oomph::ExplicitTimeSteppableObject::time_pt ( ) const

virtual

Virtual function that should be overloaded to return a pointer to a Time object.

Reimplemented in oomph::Problem.

Definition at line 163 of file explicit_timesteppers.cc.

Referenced by actions_after_explicit_timestep(), and oomph::EBDF3::timestep().

Member Data Documentation

◆ Dummy_time_value

double oomph::ExplicitTimeSteppableObject::Dummy_time_value = 0.0

staticprivate

Dummy value of time always set to zero.

Definition at line 72 of file explicit_timesteppers.h.

Referenced by time().

The documentation for this class was generated from the following files:
