#include <tetgen_mesh.template.h>

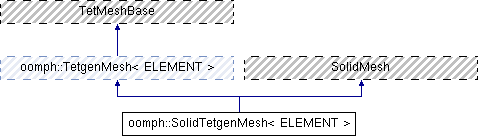

Inheritance diagram for oomph::SolidTetgenMesh< ELEMENT >:
Public Member Functions | |
| SolidTetgenMesh (const std::string &node_file_name, const std::string &element_file_name, const std::string &face_file_name, const bool &split_corner_elements, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false) | |
| Constructor. Boundary coordinates are setup automatically. More... | |
| SolidTetgenMesh (const std::string &node_file_name, const std::string &element_file_name, const std::string &face_file_name, const bool &split_corner_elements, const bool &switch_normal, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false) | |
| Constructor. Boundary coordinates are re-setup automatically, with the orientation of the outer unit normal determined by switch_normal. More... | |
| virtual | ~SolidTetgenMesh () |
| Empty Destructor. More... | |
 Public Member Functions inherited from oomph::TetgenMesh< ELEMENT > | |
| TetgenMesh () | |
| Empty constructor. More... | |
| TetgenMesh (const std::string &node_file_name, const std::string &element_file_name, const std::string &face_file_name, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false) | |
| Constructor with the input files. More... | |
| TetgenMesh (tetgenio &tetgen_data, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false) | |
| Constructor with tetgenio data structure. More... | |
| TetgenMesh (const std::string &node_file_name, const std::string &element_file_name, const std::string &face_file_name, const bool &split_corner_elements, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false) | |
| Constructor with the input files. Setting the boolean flag to true splits "corner" elements, i.e. elements that that have at least three faces on a domain boundary. The relevant elements are split without introducing hanging nodes so the sons have a "worse" shape than their fathers. However, this step avoids otherwise-hard-to-diagnose problems in fluids problems where the application of boundary conditions at such "corner" elements can overconstrain the solution. More... | |
| TetgenMesh (tetgenio &tetgen_data, const bool &split_corner_elements, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false) | |
| Constructor with tetgen data structure Setting the boolean flag to true splits "corner" elements, i.e. elements that that have at least three faces on a domain boundary. The relevant elements are split without introducing hanging nodes so the sons have a "worse" shape than their fathers. However, this step avoids otherwise-hard-to-diagnose problems in fluids problems where the application of boundary conditions at such "corner" elements can overconstrain the solution. More... | |
| TetgenMesh (TetMeshFacetedClosedSurface *const &outer_boundary_pt, Vector< TetMeshFacetedSurface *> &internal_surface_pt, const double &element_volume, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false, const bool &split_corner_elements=false) | |
| Build mesh, based on a TetgenMeshFactedClosedSurface that specifies the outer boundary of the domain and any number of internal boundaries, specified by TetMeshFacetedSurfaces. Also specify target size for uniform element size. More... | |
| void | build_tetgenio (TetMeshFacetedSurface *const &outer_boundary_pt, Vector< TetMeshFacetedSurface *> &internal_surface_pt, tetgenio &tetgen_io) |
| Build tetgenio object from the TetMeshFacetedSurfaces. More... | |
| ~TetgenMesh () | |
| Empty destructor. More... | |
| void | set_mesh_level_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data) |
| Overload set_mesh_level_time_stepper so that the stored time stepper now corresponds to the new timestepper. More... | |
| bool | tetgenio_exists () const |
| Boolen defining whether tetgenio object has been built or not. More... | |
| tetgenio *& | tetgenio_pt () |
| Access to the triangulateio representation of the mesh. More... | |
| void | set_deep_copy_tetgenio_pt (tetgenio *const &tetgenio_pt) |
| Set the tetgen pointer by a deep copy. More... | |
| void | deep_copy_of_tetgenio (tetgenio *const &input_pt, tetgenio *&output_pt) |
Additional Inherited Members | |
| Protected Member Functions inherited from oomph::TetgenMesh< ELEMENT > | |
| void | build_from_scaffold (TimeStepper *time_stepper_pt, const bool &use_attributes) |
| Build mesh from scaffold. More... | |
| Protected Attributes inherited from oomph::TetgenMesh< ELEMENT > | |
| TetgenScaffoldMesh * | Tmp_mesh_pt |
| Temporary scaffold mesh. More... | |
| bool | Tetgenio_exists |
| Boolean to indicate whether a tetgenio representation of the mesh exists. More... | |
| tetgenio * | Tetgenio_pt |
| Tetgen representation of mesh. More... | |
| bool | Use_attributes |
| Boolean flag to indicate whether to use attributes or not (required for multidomain meshes) More... | |
Detailed Description
template<class ELEMENT>
class oomph::SolidTetgenMesh< ELEMENT >
Tetgen-based mesh upgraded to become a solid mesh. Automatically enumerates all boundaries.
Definition at line 752 of file tetgen_mesh.template.h.
Constructor & Destructor Documentation
◆ SolidTetgenMesh() [1/2]
template<class ELEMENT >
|
inline |
Constructor. Boundary coordinates are setup automatically.
Definition at line 760 of file tetgen_mesh.template.h.
◆ SolidTetgenMesh() [2/2]
template<class ELEMENT >
|
inline |
Constructor. Boundary coordinates are re-setup automatically, with the orientation of the outer unit normal determined by switch_normal.
Definition at line 778 of file tetgen_mesh.template.h.
◆ ~SolidTetgenMesh()
template<class ELEMENT >
|
inlinevirtual |
Empty Destructor.
Definition at line 804 of file tetgen_mesh.template.h.
The documentation for this class was generated from the following file:
