Unstructured tet mesh based on output from Tetgen: http://wias-berlin.de/software/tetgen/. More...

#include <tetgen_mesh.template.h>

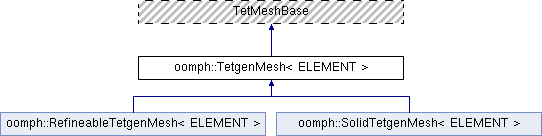

Inheritance diagram for oomph::TetgenMesh< ELEMENT >:

Public Member Functions
	TetgenMesh ()
	Empty constructor. More...

	TetgenMesh (const std::string &node_file_name, const std::string &element_file_name, const std::string &face_file_name, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false)
	Constructor with the input files. More...

	TetgenMesh (tetgenio &tetgen_data, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false)
	Constructor with tetgenio data structure. More...

	TetgenMesh (const std::string &node_file_name, const std::string &element_file_name, const std::string &face_file_name, const bool &split_corner_elements, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false)
	Constructor with the input files. Setting the boolean flag to true splits "corner" elements, i.e. elements that that have at least three faces on a domain boundary. The relevant elements are split without introducing hanging nodes so the sons have a "worse" shape than their fathers. However, this step avoids otherwise-hard-to-diagnose problems in fluids problems where the application of boundary conditions at such "corner" elements can overconstrain the solution. More...

	TetgenMesh (tetgenio &tetgen_data, const bool &split_corner_elements, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false)
	Constructor with tetgen data structure Setting the boolean flag to true splits "corner" elements, i.e. elements that that have at least three faces on a domain boundary. The relevant elements are split without introducing hanging nodes so the sons have a "worse" shape than their fathers. However, this step avoids otherwise-hard-to-diagnose problems in fluids problems where the application of boundary conditions at such "corner" elements can overconstrain the solution. More...

	TetgenMesh (TetMeshFacetedClosedSurface const &outer_boundary_pt, Vector< TetMeshFacetedSurface > &internal_surface_pt, const double &element_volume, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false, const bool &split_corner_elements=false)
	Build mesh, based on a TetgenMeshFactedClosedSurface that specifies the outer boundary of the domain and any number of internal boundaries, specified by TetMeshFacetedSurfaces. Also specify target size for uniform element size. More...

void	build_tetgenio (TetMeshFacetedSurface const &outer_boundary_pt, Vector< TetMeshFacetedSurface > &internal_surface_pt, tetgenio &tetgen_io)
	Build tetgenio object from the TetMeshFacetedSurfaces. More...

	~TetgenMesh ()
	Empty destructor. More...

void	set_mesh_level_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)
	Overload set_mesh_level_time_stepper so that the stored time stepper now corresponds to the new timestepper. More...

bool	tetgenio_exists () const
	Boolen defining whether tetgenio object has been built or not. More...

tetgenio *&	tetgenio_pt ()
	Access to the triangulateio representation of the mesh. More...

void	set_deep_copy_tetgenio_pt (tetgenio *const &tetgenio_pt)
	Set the tetgen pointer by a deep copy. More...

void	deep_copy_of_tetgenio (tetgenio const &input_pt, tetgenio &output_pt)

Protected Member Functions
void	build_from_scaffold (TimeStepper *time_stepper_pt, const bool &use_attributes)
	Build mesh from scaffold. More...

Protected Attributes
TetgenScaffoldMesh *	Tmp_mesh_pt
	Temporary scaffold mesh. More...

bool	Tetgenio_exists
	Boolean to indicate whether a tetgenio representation of the mesh exists. More...

tetgenio *	Tetgenio_pt
	Tetgen representation of mesh. More...

bool	Use_attributes
	Boolean flag to indicate whether to use attributes or not (required for multidomain meshes) More...

Detailed Description

template<class ELEMENT>
class oomph::TetgenMesh< ELEMENT >

Unstructured tet mesh based on output from Tetgen: http://wias-berlin.de/software/tetgen/.

Definition at line 56 of file tetgen_mesh.template.h.

Constructor & Destructor Documentation

◆ TetgenMesh() [1/6]

template<class ELEMENT>

oomph::TetgenMesh< ELEMENT >::TetgenMesh ( )

inline

Empty constructor.

Definition at line 62 of file tetgen_mesh.template.h.

◆ TetgenMesh() [2/6]

template<class ELEMENT>

oomph::TetgenMesh< ELEMENT >::TetgenMesh	(	const std::string &	node_file_name,
		const std::string &	element_file_name,
		const std::string &	face_file_name,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`,
		const bool &	use_attributes = `false`
	)

inline

Constructor with the input files.

Definition at line 69 of file tetgen_mesh.template.h.

References oomph::TetgenMesh< ELEMENT >::build_from_scaffold(), oomph::TetgenMesh< ELEMENT >::Tmp_mesh_pt, and oomph::TetgenMesh< ELEMENT >::Use_attributes.

◆ TetgenMesh() [3/6]

template<class ELEMENT>

oomph::TetgenMesh< ELEMENT >::TetgenMesh	(	tetgenio &	tetgen_data,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`,
		const bool &	use_attributes = `false`
	)

inline

Constructor with tetgenio data structure.

Definition at line 109 of file tetgen_mesh.template.h.

References oomph::TetgenMesh< ELEMENT >::build_from_scaffold(), oomph::TetgenMesh< ELEMENT >::Tetgenio_exists, oomph::TetgenMesh< ELEMENT >::Tetgenio_pt, oomph::TetgenMesh< ELEMENT >::Tmp_mesh_pt, and oomph::TetgenMesh< ELEMENT >::Use_attributes.

◆ TetgenMesh() [4/6]

template<class ELEMENT>

oomph::TetgenMesh< ELEMENT >::TetgenMesh	(	const std::string &	node_file_name,
		const std::string &	element_file_name,
		const std::string &	face_file_name,
		const bool &	split_corner_elements,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`,
		const bool &	use_attributes = `false`
	)

inline

Constructor with the input files. Setting the boolean flag to true splits "corner" elements, i.e. elements that that have at least three faces on a domain boundary. The relevant elements are split without introducing hanging nodes so the sons have a "worse" shape than their fathers. However, this step avoids otherwise-hard-to-diagnose problems in fluids problems where the application of boundary conditions at such "corner" elements can overconstrain the solution.

Definition at line 158 of file tetgen_mesh.template.h.

References oomph::TetgenMesh< ELEMENT >::build_from_scaffold(), oomph::TetgenMesh< ELEMENT >::Tetgenio_exists, oomph::TetgenMesh< ELEMENT >::Tetgenio_pt, oomph::TetgenMesh< ELEMENT >::Tmp_mesh_pt, and oomph::TetgenMesh< ELEMENT >::Use_attributes.

◆ TetgenMesh() [5/6]

template<class ELEMENT>

oomph::TetgenMesh< ELEMENT >::TetgenMesh	(	tetgenio &	tetgen_data,
		const bool &	split_corner_elements,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`,
		const bool &	use_attributes = `false`
	)

inline

Constructor with tetgen data structure Setting the boolean flag to true splits "corner" elements, i.e. elements that that have at least three faces on a domain boundary. The relevant elements are split without introducing hanging nodes so the sons have a "worse" shape than their fathers. However, this step avoids otherwise-hard-to-diagnose problems in fluids problems where the application of boundary conditions at such "corner" elements can overconstrain the solution.

Definition at line 215 of file tetgen_mesh.template.h.

References oomph::TetgenMesh< ELEMENT >::build_from_scaffold(), oomph::TetgenMesh< ELEMENT >::Tetgenio_exists, oomph::TetgenMesh< ELEMENT >::Tetgenio_pt, oomph::TetgenMesh< ELEMENT >::Tmp_mesh_pt, and oomph::TetgenMesh< ELEMENT >::Use_attributes.

◆ TetgenMesh() [6/6]

template<class ELEMENT>

oomph::TetgenMesh< ELEMENT >::TetgenMesh	(	TetMeshFacetedClosedSurface *const &	outer_boundary_pt,
		Vector< TetMeshFacetedSurface *> &	internal_surface_pt,
		const double &	element_volume,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`,
		const bool &	use_attributes = `false`,
		const bool &	split_corner_elements = `false`
	)

inline

Build mesh, based on a TetgenMeshFactedClosedSurface that specifies the outer boundary of the domain and any number of internal boundaries, specified by TetMeshFacetedSurfaces. Also specify target size for uniform element size.

Definition at line 265 of file tetgen_mesh.template.h.

References oomph::TetgenMesh< ELEMENT >::build_from_scaffold(), oomph::TetgenMesh< ELEMENT >::build_tetgenio(), oomph::TetgenMesh< ELEMENT >::Tetgenio_exists, oomph::TetgenMesh< ELEMENT >::Tetgenio_pt, oomph::TetgenMesh< ELEMENT >::Tmp_mesh_pt, and oomph::TetgenMesh< ELEMENT >::Use_attributes.

◆ ~TetgenMesh()

template<class ELEMENT>

oomph::TetgenMesh< ELEMENT >::~TetgenMesh ( )

inline

Empty destructor.

Definition at line 674 of file tetgen_mesh.template.h.

References oomph::TetgenMesh< ELEMENT >::Tetgenio_exists, and oomph::TetgenMesh< ELEMENT >::Tetgenio_pt.

Member Function Documentation

◆ build_from_scaffold()

template<class ELEMENT >

void oomph::TetgenMesh< ELEMENT >::build_from_scaffold	(	TimeStepper *	time_stepper_pt,
		const bool &	use_attributes
	)

protected

Build mesh from scaffold.

Build unstructured tet mesh based on output from scaffold.

Definition at line 57 of file tetgen_mesh.template.cc.

Referenced by oomph::RefineableTetgenMesh< ELEMENT >::RefineableTetgenMesh(), oomph::TetgenMesh< ELEMENT >::set_deep_copy_tetgenio_pt(), and oomph::TetgenMesh< ELEMENT >::TetgenMesh().

◆ build_tetgenio()

template<class ELEMENT>

void oomph::TetgenMesh< ELEMENT >::build_tetgenio	(	TetMeshFacetedSurface *const &	outer_boundary_pt,
		Vector< TetMeshFacetedSurface *> &	internal_surface_pt,
		tetgenio &	tetgen_io
	)

inline

Build tetgenio object from the TetMeshFacetedSurfaces.

ALH: This may not be needed

Definition at line 434 of file tetgen_mesh.template.h.

Referenced by oomph::TetgenMesh< ELEMENT >::TetgenMesh().

◆ deep_copy_of_tetgenio()

template<class ELEMENT >

void oomph::TetgenMesh< ELEMENT >::deep_copy_of_tetgenio	(	tetgenio *const &	input_pt,
		tetgenio *&	output_pt
	)

Transfer tetgenio data from the input to the output The output is assumed to have been constructed and "empty"

Definition at line 845 of file tetgen_mesh.template.cc.

Referenced by oomph::RefineableTetgenMesh< ELEMENT >::RefineableTetgenMesh(), and oomph::TetgenMesh< ELEMENT >::set_deep_copy_tetgenio_pt().

◆ set_deep_copy_tetgenio_pt()

template<class ELEMENT>

void oomph::TetgenMesh< ELEMENT >::set_deep_copy_tetgenio_pt ( tetgenio *const & tetgenio_pt )

inline

Set the tetgen pointer by a deep copy.

Definition at line 699 of file tetgen_mesh.template.h.

References oomph::TetgenMesh< ELEMENT >::build_from_scaffold(), oomph::TetgenMesh< ELEMENT >::deep_copy_of_tetgenio(), oomph::TetgenMesh< ELEMENT >::Tetgenio_exists, and oomph::TetgenMesh< ELEMENT >::Tetgenio_pt.

◆ set_mesh_level_time_stepper()

template<class ELEMENT>

void oomph::TetgenMesh< ELEMENT >::set_mesh_level_time_stepper	(	TimeStepper *const &	time_stepper_pt,
		const bool &	preserve_existing_data
	)

inline

Overload set_mesh_level_time_stepper so that the stored time stepper now corresponds to the new timestepper.

Definition at line 685 of file tetgen_mesh.template.h.

◆ tetgenio_exists()

template<class ELEMENT>

bool oomph::TetgenMesh< ELEMENT >::tetgenio_exists ( ) const

inline

Boolen defining whether tetgenio object has been built or not.

Definition at line 692 of file tetgen_mesh.template.h.

References oomph::TetgenMesh< ELEMENT >::Tetgenio_exists.

◆ tetgenio_pt()

template<class ELEMENT>

tetgenio* & oomph::TetgenMesh< ELEMENT >::tetgenio_pt ( )

inline

Access to the triangulateio representation of the mesh.

Definition at line 696 of file tetgen_mesh.template.h.

References oomph::TetgenMesh< ELEMENT >::Tetgenio_pt.

Referenced by oomph::RefineableTetgenMesh< ELEMENT >::adapt().

Member Data Documentation

◆ Tetgenio_exists

template<class ELEMENT>

bool oomph::TetgenMesh< ELEMENT >::Tetgenio_exists

protected

Boolean to indicate whether a tetgenio representation of the mesh exists.

Definition at line 728 of file tetgen_mesh.template.h.

Referenced by oomph::RefineableTetgenMesh< ELEMENT >::RefineableTetgenMesh(), oomph::TetgenMesh< ELEMENT >::set_deep_copy_tetgenio_pt(), oomph::TetgenMesh< ELEMENT >::tetgenio_exists(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), and oomph::TetgenMesh< ELEMENT >::~TetgenMesh().

◆ Tetgenio_pt

template<class ELEMENT>

tetgenio* oomph::TetgenMesh< ELEMENT >::Tetgenio_pt

protected

Tetgen representation of mesh.

Definition at line 731 of file tetgen_mesh.template.h.

Referenced by oomph::RefineableTetgenMesh< ELEMENT >::RefineableTetgenMesh(), oomph::TetgenMesh< ELEMENT >::set_deep_copy_tetgenio_pt(), oomph::TetgenMesh< ELEMENT >::tetgenio_pt(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), and oomph::TetgenMesh< ELEMENT >::~TetgenMesh().

◆ Tmp_mesh_pt

template<class ELEMENT>

TetgenScaffoldMesh* oomph::TetgenMesh< ELEMENT >::Tmp_mesh_pt

protected

Temporary scaffold mesh.

Definition at line 724 of file tetgen_mesh.template.h.

Referenced by oomph::RefineableTetgenMesh< ELEMENT >::RefineableTetgenMesh(), and oomph::TetgenMesh< ELEMENT >::TetgenMesh().

◆ Use_attributes

template<class ELEMENT>

bool oomph::TetgenMesh< ELEMENT >::Use_attributes

protected

Boolean flag to indicate whether to use attributes or not (required for multidomain meshes)

Definition at line 735 of file tetgen_mesh.template.h.

Referenced by oomph::TetgenMesh< ELEMENT >::TetgenMesh().

The documentation for this class was generated from the following files:
