Refineable version of the OneDMesh. More...
#include <one_d_mesh.template.h>

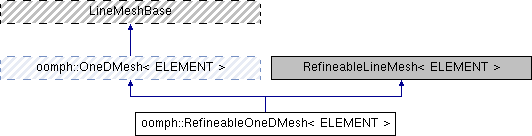

Inheritance diagram for oomph::RefineableOneDMesh< ELEMENT >:
Public Member Functions | |
| RefineableOneDMesh (const unsigned &n_element, const double &length, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper) | |
| Constructor: Pass number of elements, n_element, length of domain, length, and pointer to timestepper (defaults to Steady) More... | |
| RefineableOneDMesh (const unsigned &n_element, const double &xmin, const double &xmax, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper) | |
| Constructor that allows the specification of minimum and maximum values of x coordinates. Also pass pointer to timestepper (defaults to Steady). More... | |
 Public Member Functions inherited from oomph::OneDMesh< ELEMENT > | |
| OneDMesh (const unsigned &n_element, const double &length, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper) | |
| Constructor: Pass number of elements, n_element, length of domain, length, and pointer to timestepper (defaults to a Steady timestepper so we don't need to specify one in problems without time-dependence). More... | |
| OneDMesh (const unsigned &n_element, const double &xmin, const double &xmax, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper) | |
| Constructor: Pass number of elements, n_element, minimum coordinate, xmin, maximum coordinate, xmax, and a pointer to a timestepper. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from oomph::OneDMesh< ELEMENT > | |
| void | check_1d () const |
| void | build_mesh (TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper) |
| Generic mesh constuction routine, called by all constructors. More... | |
| Protected Attributes inherited from oomph::OneDMesh< ELEMENT > | |
| double | Xmin |
| Minimum coordinate. More... | |
| double | Xmax |
| Maximum coordinate. More... | |
| double | Length |
| Length of the domain. More... | |
| unsigned | N |
| Number of elements. More... | |
Detailed Description
template<class ELEMENT>
class oomph::RefineableOneDMesh< ELEMENT >
Refineable version of the OneDMesh.
Definition at line 127 of file one_d_mesh.template.h.
Constructor & Destructor Documentation
◆ RefineableOneDMesh() [1/2]
template<class ELEMENT >
|
inline |
Constructor: Pass number of elements, n_element, length of domain, length, and pointer to timestepper (defaults to Steady)
Definition at line 135 of file one_d_mesh.template.h.
◆ RefineableOneDMesh() [2/2]
template<class ELEMENT >
|
inline |
Constructor that allows the specification of minimum and maximum values of x coordinates. Also pass pointer to timestepper (defaults to Steady).
Definition at line 147 of file one_d_mesh.template.h.
The documentation for this class was generated from the following file:
