oomph::OneDMesh< ELEMENT > Class Template Reference

#include <one_d_mesh.template.h>

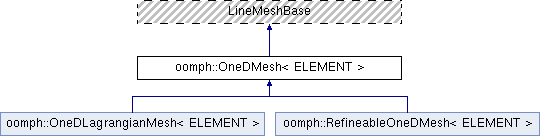

Inheritance diagram for oomph::OneDMesh< ELEMENT >:
oomph::OneDLagrangianMesh< ELEMENT > oomph::RefineableOneDMesh< ELEMENT >

Public Member Functions

 OneDMesh (const unsigned &n_element, const double &length, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
 Constructor: Pass number of elements, n_element, length of domain, length, and pointer to timestepper (defaults to a Steady timestepper so we don't need to specify one in problems without time-dependence). More...

 OneDMesh (const unsigned &n_element, const double &xmin, const double &xmax, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
 Constructor: Pass number of elements, n_element, minimum coordinate, xmin, maximum coordinate, xmax, and a pointer to a timestepper. More...


Protected Member Functions

void check_1d () const

void build_mesh (TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
 Generic mesh constuction routine, called by all constructors. More...


Protected Attributes

double Xmin
 Minimum coordinate. More...

double Xmax
 Maximum coordinate. More...

double Length
 Length of the domain. More...

unsigned N
 Number of elements. More...


Detailed Description

template<class ELEMENT>
class oomph::OneDMesh< ELEMENT >

1D mesh consisting of N one-dimensional elements from the QElement family.

\[ x \in [Xmin,Xmax] \]

The mesh has two boundaries:

There is one node on each of these boundaries.

Definition at line 56 of file one_d_mesh.template.h.

Constructor & Destructor Documentation

◆ OneDMesh() [1/2]

template<class ELEMENT>
oomph::OneDMesh< ELEMENT >::OneDMesh ( const unsigned &  n_element,
const double &  length,
TimeStepper *  time_stepper_pt = &Mesh::Default_TimeStepper
)
inline

Constructor: Pass number of elements, n_element, length of domain, length, and pointer to timestepper (defaults to a Steady timestepper so we don't need to specify one in problems without time-dependence).

Definition at line 65 of file one_d_mesh.template.h.

◆ OneDMesh() [2/2]

template<class ELEMENT>
oomph::OneDMesh< ELEMENT >::OneDMesh ( const unsigned &  n_element,
const double &  xmin,
const double &  xmax,
TimeStepper *  time_stepper_pt = &Mesh::Default_TimeStepper
)
inline

Constructor: Pass number of elements, n_element, minimum coordinate, xmin, maximum coordinate, xmax, and a pointer to a timestepper.

Definition at line 77 of file one_d_mesh.template.h.

Member Function Documentation

◆ build_mesh()

template<class ELEMENT >
void oomph::OneDMesh< ELEMENT >::build_mesh ( TimeStepper *  time_stepper_pt = &Mesh::Default_TimeStepper)
protected

Generic mesh constuction routine, called by all constructors.

The generic mesh construction routine — this contains all the hard work and is called by all constructors

Definition at line 47 of file one_d_mesh.template.cc.

Referenced by oomph::OneDMesh< FSIHermiteBeamElement >::OneDMesh().

◆ check_1d()

template<class ELEMENT>
void oomph::OneDMesh< ELEMENT >::check_1d ( ) const
inlineprotected

Mesh can only be built with 1D elements (but can be either T or Q so can't use the normal assert_geometric_element function.

Definition at line 90 of file one_d_mesh.template.h.

Referenced by oomph::OneDMesh< FSIHermiteBeamElement >::OneDMesh().

Member Data Documentation

◆ Length

template<class ELEMENT>
double oomph::OneDMesh< ELEMENT >::Length
protected

Length of the domain.

Definition at line 111 of file one_d_mesh.template.h.

◆ N

template<class ELEMENT>
unsigned oomph::OneDMesh< ELEMENT >::N
protected

Number of elements.

Definition at line 114 of file one_d_mesh.template.h.

◆ Xmax

template<class ELEMENT>
double oomph::OneDMesh< ELEMENT >::Xmax
protected

Maximum coordinate.

Definition at line 108 of file one_d_mesh.template.h.

◆ Xmin

template<class ELEMENT>
double oomph::OneDMesh< ELEMENT >::Xmin
protected

Minimum coordinate.

Definition at line 105 of file one_d_mesh.template.h.
