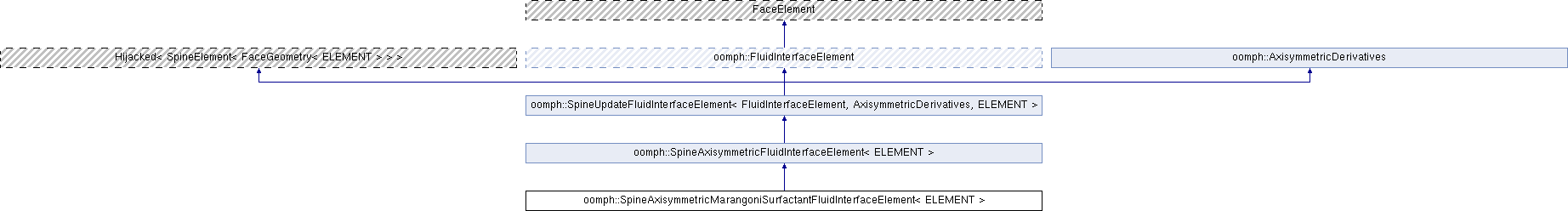

Inheritance diagram for oomph::SpineAxisymmetricMarangoniSurfactantFluidInterfaceElement< ELEMENT >:

Public Member Functions
	SpineAxisymmetricMarangoniSurfactantFluidInterfaceElement (FiniteElement *const &element_pt, const int &face_index)

double	beta ()
	Return the Elasticity number. More...

double	peclet_s ()
	Return the surface peclect number. More...

double	peclet_strouhal_s ()
	Return the surface peclect strouhal number. More...

double *&	beta_pt ()
	Access function for pointer to the Elasticity number. More...

double *&	peclet_s_pt ()
	Access function for pointer to the surface Peclet number. More...

double *&	peclet_strouhal_s_pt ()
	Access function for pointer to the surface Peclet x Strouhal number. More...

void	output (std::ostream &outfile, const unsigned &n_plot)

double	integrate_c () const
	Compute the concentration intergated over the area. More...

Public Member Functions inherited from oomph::SpineAxisymmetricFluidInterfaceElement< ELEMENT >
	SpineAxisymmetricFluidInterfaceElement (FiniteElement *const &element_pt, const int &face_index)

Public Member Functions inherited from oomph::SpineUpdateFluidInterfaceElement< FluidInterfaceElement, AxisymmetricDerivatives, ELEMENT >
	SpineUpdateFluidInterfaceElement (FiniteElement *const &element_pt, const int &face_index, const unsigned &id=0)
	Constructor, the arguments are a pointer to the "bulk" element and the index of the face to be created. More...

void	fill_in_contribution_to_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)
	Calculate the contribution to the residuals and the jacobian. More...

void	add_additional_residual_contributions_interface (Vector< double > &residuals, DenseMatrix< double > &jacobian, const unsigned &flag, const Shape &psif, const DShape &dpsifds, const DShape &dpsifdS, const DShape &dpsifdS_div, const Vector< double > &s, const Vector< double > &interpolated_x, const Vector< double > &interpolated_n, const double &W, const double &J)
	Helper function to calculate the additional contributions These are those filled in by the particular equations. More...

void	output (std::ostream &outfile)
	Overload the output function. More...

void	output (std::ostream &outfile, const unsigned &n_plot)
	Output the element. More...

void	output (FILE *file_pt)
	Overload the C-style output function. More...

void	output (FILE *file_pt, const unsigned &n_plot)
	C-style Output function. More...

virtual FluidInterfaceBoundingElement *	make_bounding_element (const int &face_index)
	Create an "bounding" element of the type specified by the BoundingElementType policy class Here, this allows the application of a contact angle boundary condition on the the specified face. More...

Public Member Functions inherited from oomph::FluidInterfaceElement
	FluidInterfaceElement ()
	Constructor, set the default values of the booleans and pointers (null) More...

void	fill_in_contribution_to_residuals (Vector< double > &residuals)
	Calculate the residuals by calling the generic residual contribution. More...

const double &	ca () const
	The value of the Capillary number. More...

double *&	ca_pt ()
	Pointer to the Capillary number. More...

const double &	st () const
	The value of the Strouhal number. More...

double *&	st_pt ()
	The pointer to the Strouhal number. More...

double	u (const unsigned &j, const unsigned &i)
	Return the i-th velocity component at local node j. More...

double	interpolated_u (const Vector< double > &s, const unsigned &i)
	Calculate the i-th velocity component at the local coordinate s. More...

double	pext () const
	Return the value of the external pressure. More...

void	set_external_pressure_data (Data *external_pressure_data_pt)
	Set the Data that contains the single pressure value that specifies the "external pressure" for the interface/free-surface. Setting this only makes sense if the interface is, in fact, a free surface (well, an interface to another inviscid fluid if you want to be picky). More...

void	set_external_pressure_data (Data *external_pressure_data_pt, const unsigned &index_of_external_pressure_value)
	Set the Data that contains the pressure value that specifies the "external pressure" for the interface/free-surface. Setting this only makes sense if the interface is, in fact, a free surface (well, an interface to another inviscid fluid if you want to be picky). Second argument specifies the index of the pressure value within the Data object. More...

void	output (std::ostream &outfile)
	Overload the output function. More...

void	output (std::ostream &outfile, const unsigned &n_plot)
	Output function. More...

void	output (FILE *file_pt)
	Overload the C-style output function. More...

void	output (FILE *file_pt, const unsigned &n_plot)
	C-style Output function. More...

Public Member Functions inherited from oomph::AxisymmetricDerivatives
	AxisymmetricDerivatives ()

Protected Member Functions
double	interpolated_C (const Vector< double > &s)
	Get the surfactant concentration. More...

double	dcdt_surface (const unsigned &l) const
	The time derivative of the surface concentration. More...

double	sigma (const Vector< double > &s)

void	fill_in_contribution_to_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)
	Fill in the contribution to the residuals Calculate the contribution to the jacobian. More...

void	add_additional_residual_contributions_interface (Vector< double > &residuals, DenseMatrix< double > &jacobian, const unsigned &flag, const Shape &psif, const DShape &dpsifds, const DShape &dpsifdS, const DShape &dpsifdS_div, const Vector< double > &s, const Vector< double > &interpolated_x, const Vector< double > &interpolated_n, const double &W, const double &J)
	Overload the Helper function to calculate the residuals and jacobian entries. This particular function ensures that the additional entries are calculated inside the integration loop. More...

void	fill_in_contribution_to_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix)

Protected Member Functions inherited from oomph::SpineUpdateFluidInterfaceElement< FluidInterfaceElement, AxisymmetricDerivatives, ELEMENT >
double	compute_surface_derivatives (const Shape &psi, const DShape &dpsids, const DenseMatrix< double > &interpolated_t, const Vector< double > &interpolated_x, DShape &surface_gradient, DShape &surface_divergence)
	Fill in the specific surface derivative calculations by calling the appropriate class function. More...

Protected Member Functions inherited from oomph::FluidInterfaceElement
int	pext_local_eqn ()
	Access function for the local equation number that corresponds to the external pressure. More...

virtual void	fill_in_generic_residual_contribution_interface (Vector< double > &residuals, DenseMatrix< double > &jacobian, unsigned flag)
	Helper function to calculate the residuals and (if flag==1) the Jacobian of the equations. This is implemented generically using the surface divergence information that is overloaded in each element i.e. axisymmetric, two- or three-dimensional. More...

Protected Member Functions inherited from oomph::AxisymmetricDerivatives
double	compute_surface_derivatives (const Shape &psi, const DShape &dpsids, const DenseMatrix< double > &interpolated_t, const Vector< double > &interpolated_x, DShape &surface_gradient, DShape &surface_divergence)
	Fill in the specific surface derivative calculations. More...

Private Attributes
double *	Beta_pt
	Pointer to an Elasticity number. More...

double *	Peclet_S_pt
	Pointer to Surface Peclet number. More...

double *	Peclet_Strouhal_S_pt
	Pointer to the surface Peclect Strouhal number. More...

unsigned	C_index

Static Private Attributes
static double	Default_Physical_Constant_Value = 1.0
	Default value of the physical constants. More...

Additional Inherited Members
Protected Attributes inherited from oomph::FluidInterfaceElement
Vector< unsigned >	U_index_interface
	Nodal index at which the i-th velocity component is stored. More...

int	External_data_number_of_external_pressure
	The Data that contains the external pressure is stored as external Data for the element. Which external Data item is it? (int so it can be initialised to -1, indicating that external pressure hasn't been set). More...

Data *	Pext_data_pt
	Pointer to the Data item that stores the external pressure. More...

unsigned	Index_of_external_pressure_value
	Which of the values in Pext_data_pt stores the external pressure. More...

Detailed Description

template<class ELEMENT>
class oomph::SpineAxisymmetricMarangoniSurfactantFluidInterfaceElement< ELEMENT >

Spine-based Marangoni surface tension elements that add a linear dependence on concentration of a surface chemical to the surface tension, which decreases with increasing concentration. The non-dimensionalisation is the same as Campana et al (2004) but we may wish to revisit this.

Definition at line 119 of file rayleigh_instability_insoluble_surfactant.cc.

Constructor & Destructor Documentation

◆ SpineAxisymmetricMarangoniSurfactantFluidInterfaceElement()

template<class ELEMENT>

oomph::SpineAxisymmetricMarangoniSurfactantFluidInterfaceElement< ELEMENT >::SpineAxisymmetricMarangoniSurfactantFluidInterfaceElement	(	FiniteElement *const &	element_pt,
		const int &	face_index
	)

inline

Constructor that passes the bulk element and face index down to the underlying

Definition at line 536 of file rayleigh_instability_insoluble_surfactant.cc.

Member Function Documentation

◆ add_additional_residual_contributions_interface()

template<class ELEMENT>

void oomph::SpineAxisymmetricMarangoniSurfactantFluidInterfaceElement< ELEMENT >::add_additional_residual_contributions_interface	(	Vector< double > &	residuals,
		DenseMatrix< double > &	jacobian,
		const unsigned &	flag,
		const Shape &	psif,
		const DShape &	dpsifds,
		const DShape &	dpsifdS,
		const DShape &	dpsifdS_div,
		const Vector< double > &	s,
		const Vector< double > &	interpolated_x,
		const Vector< double > &	interpolated_n,
		const double &	W,
		const double &	J
	)

inlineprotectedvirtual

Overload the Helper function to calculate the residuals and jacobian entries. This particular function ensures that the additional entries are calculated inside the integration loop.

Reimplemented from oomph::FluidInterfaceElement.

Definition at line 283 of file rayleigh_instability_insoluble_surfactant.cc.

◆ beta()

template<class ELEMENT>

double oomph::SpineAxisymmetricMarangoniSurfactantFluidInterfaceElement< ELEMENT >::beta ( )

inline

Return the Elasticity number.

Definition at line 562 of file rayleigh_instability_insoluble_surfactant.cc.

◆ beta_pt()

template<class ELEMENT>

double* & oomph::SpineAxisymmetricMarangoniSurfactantFluidInterfaceElement< ELEMENT >::beta_pt ( )

inline

Access function for pointer to the Elasticity number.

Definition at line 571 of file rayleigh_instability_insoluble_surfactant.cc.

Referenced by InterfaceProblem< ELEMENT, TIMESTEPPER >::InterfaceProblem().

◆ dcdt_surface()

template<class ELEMENT>

double oomph::SpineAxisymmetricMarangoniSurfactantFluidInterfaceElement< ELEMENT >::dcdt_surface ( const unsigned & l ) const

inlineprotected

The time derivative of the surface concentration.

Definition at line 169 of file rayleigh_instability_insoluble_surfactant.cc.

◆ fill_in_contribution_to_jacobian()

template<class ELEMENT>

void oomph::SpineAxisymmetricMarangoniSurfactantFluidInterfaceElement< ELEMENT >::fill_in_contribution_to_jacobian	(	Vector< double > &	residuals,
		DenseMatrix< double > &	jacobian
	)

inlineprotected

Fill in the contribution to the residuals Calculate the contribution to the jacobian.

Definition at line 219 of file rayleigh_instability_insoluble_surfactant.cc.

◆ fill_in_contribution_to_jacobian_and_mass_matrix()

template<class ELEMENT>

void oomph::SpineAxisymmetricMarangoniSurfactantFluidInterfaceElement< ELEMENT >::fill_in_contribution_to_jacobian_and_mass_matrix	(	Vector< double > &	residuals,
		DenseMatrix< double > &	jacobian,
		DenseMatrix< double > &	mass_matrix
	)
