Simple cubic 3D Brick mesh class. More...

#include <simple_cubic_mesh.template.h>

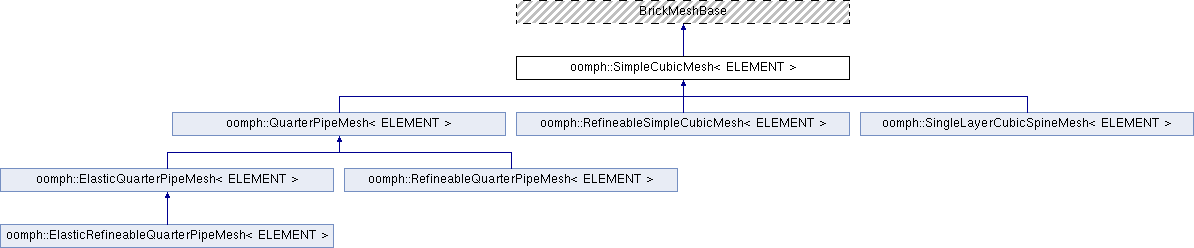

Inheritance diagram for oomph::SimpleCubicMesh< ELEMENT >:

Public Member Functions
	SimpleCubicMesh (const unsigned &nx, const unsigned &ny, const unsigned &nz, const double &lx, const double &ly, const double &lz, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
	Constructor: Pass number of elements in the x, y, and z directions, and the corresponding dimensions. Assume that the back lower left corner is located at (0,0,0) Timestepper defaults to Steady. More...

	SimpleCubicMesh (const unsigned &nx, const unsigned &ny, const unsigned &nz, const double &xmin, const double &xmax, const double &ymin, const double &ymax, const double &zmin, const double &zmax, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
	Constructor: Pass the number of elements in the x,y and z directions and the correspoding minimum and maximum values of the coordinates in each direction. More...

const unsigned &	nx () const
	Access function for number of elements in x directions. More...

const unsigned &	ny () const
	Access function for number of elements in y directions. More...

const unsigned &	nz () const
	Access function for number of elements in y directions. More...

Protected Member Functions
void	build_mesh (TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
	Generic mesh construction function: contains all the hard work. More...

Protected Attributes
unsigned	Nx
	Number of elements in x direction. More...

unsigned	Ny
	Number of elements in y direction. More...

unsigned	Nz
	Number of elements in y direction. More...

double	Xmin
	Minimum value of x coordinate. More...

double	Xmax
	Maximum value of x coordinate. More...

double	Ymin
	Minimum value of y coordinate. More...

double	Ymax
	Minimum value of y coordinate. More...

double	Zmin
	Minimum value of z coordinate. More...

double	Zmax
	Maximum value of z coordinate. More...

Detailed Description

template<class ELEMENT>
class oomph::SimpleCubicMesh< ELEMENT >

Simple cubic 3D Brick mesh class.

Definition at line 52 of file simple_cubic_mesh.template.h.

Constructor & Destructor Documentation

◆ SimpleCubicMesh() [1/2]

template<class ELEMENT >

oomph::SimpleCubicMesh< ELEMENT >::SimpleCubicMesh	(	const unsigned &	nx,
		const unsigned &	ny,
		const unsigned &	nz,
		const double &	lx,
		const double &	ly,
		const double &	lz,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`
	)

inline

Constructor: Pass number of elements in the x, y, and z directions, and the corresponding dimensions. Assume that the back lower left corner is located at (0,0,0) Timestepper defaults to Steady.

Definition at line 61 of file simple_cubic_mesh.template.h.

References oomph::SimpleCubicMesh< ELEMENT >::build_mesh().

◆ SimpleCubicMesh() [2/2]

template<class ELEMENT >

oomph::SimpleCubicMesh< ELEMENT >::SimpleCubicMesh	(	const unsigned &	nx,
		const unsigned &	ny,
		const unsigned &	nz,
		const double &	xmin,
		const double &	xmax,
		const double &	ymin,
		const double &	ymax,
		const double &	zmin,
		const double &	zmax,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`
	)

inline

Constructor: Pass the number of elements in the x,y and z directions and the correspoding minimum and maximum values of the coordinates in each direction.

Definition at line 77 of file simple_cubic_mesh.template.h.

References oomph::SimpleCubicMesh< ELEMENT >::build_mesh().

Member Function Documentation

◆ build_mesh()

template<class ELEMENT >

void oomph::SimpleCubicMesh< ELEMENT >::build_mesh ( TimeStepper * time_stepper_pt = &Mesh::Default_TimeStepper )

protected

Generic mesh construction function: contains all the hard work.

Generic mesh construction. This function contains all the details of the mesh generation process, including all the tedious loops, counting spacing and boundary functions.

Definition at line 45 of file simple_cubic_mesh.template.cc.

Referenced by oomph::SimpleCubicMesh< ELEMENT >::SimpleCubicMesh().
