3D quarter tube mesh class. The domain is specified by the GeomObject that identifies boundary 3. Non-refineable base version! More...

#include <quarter_tube_mesh.template.h>

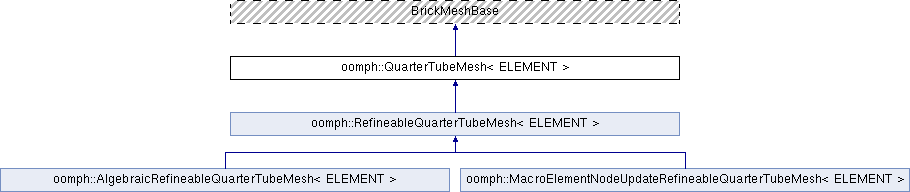

Inheritance diagram for oomph::QuarterTubeMesh< ELEMENT >:

Public Member Functions
	QuarterTubeMesh (GeomObject wall_pt, const Vector< double > &xi_lo, const double &fract_mid, const Vector< double > &xi_hi, const unsigned &nlayer, TimeStepper time_stepper_pt=&Mesh::Default_TimeStepper)
	Constructor: Pass pointer to geometric object that specifies the wall, start and end coordinates on the geometric object, and the fraction along which the dividing line is to be placed, and the timestepper. Timestepper defaults to Steady dummy timestepper. More...

virtual	~QuarterTubeMesh ()
	Destructor: empty. More...

GeomObject *&	wall_pt ()
	Access function to GeomObject representing wall. More...

QuarterTubeDomain *	domain_pt ()
	Access function to domain. More...

QuarterTubeDomain::BLSquashFctPt &	bl_squash_fct_pt ()
	Function pointer for function that squashes the outer macro elements towards the wall by mapping the input value of the "radial" macro element coordinate to the return value (defined in the underlying Domain object) More...

virtual QuarterTubeDomain::AxialSpacingFctPt &	axial_spacing_fct_pt ()
	Function pointer for function for axial spacing. More...

QuarterTubeDomain *	domain_pt () const
	Access function to underlying domain. More...

Protected Attributes
QuarterTubeDomain *	Domain_pt
	Pointer to domain. More...

GeomObject *	Wall_pt
	Pointer to the geometric object that represents the curved wall. More...

Vector< double >	Xi_lo
	Lower limits for the coordinates along the wall. More...

double	Fract_mid
	Fraction along wall where outer ring is to be divided. More...

Vector< double >	Xi_hi
	Upper limits for the coordinates along the wall. More...

Detailed Description

template<class ELEMENT>
class oomph::QuarterTubeMesh< ELEMENT >

3D quarter tube mesh class. The domain is specified by the GeomObject that identifies boundary 3. Non-refineable base version!

The mesh boundaries are numbered as follows:

Boundary 0: "Inflow" cross section; located along the line parametrised by $\xi_0 = \xi_0^{lo}$ on the geometric object that specifies the wall.
Boundary 1: Plane x=0
Boundary 2: Plane y=0
Boundary 3: The curved wall
Boundary 4: "Outflow" cross section; located along the line parametrised by $\xi_0 = \xi_0^{hi}$ on the geometric object that specifies the wall.

IMPORTANT NOTE: The interface looks more general than it should. The toplogy must remain that of a quarter tube, or the mesh generation will break.

Definition at line 70 of file quarter_tube_mesh.template.h.

Constructor & Destructor Documentation

◆ QuarterTubeMesh()

template<class ELEMENT >

oomph::QuarterTubeMesh< ELEMENT >::QuarterTubeMesh	(	GeomObject *	wall_pt,
		const Vector< double > &	xi_lo,
		const double &	fract_mid,
		const Vector< double > &	xi_hi,
		const unsigned &	nlayer,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`
	)

Constructor: Pass pointer to geometric object that specifies the wall, start and end coordinates on the geometric object, and the fraction along which the dividing line is to be placed, and the timestepper. Timestepper defaults to Steady dummy timestepper.

Constructor for deformable quarter tube mesh class. The domain is specified by the GeomObject that identifies boundary 3. Pass pointer to geometric object that specifies the wall, start and end coordinates on the geometric object, and the fraction along which the dividing line is to be placed, and the timestepper. Timestepper defaults to Static dummy timestepper.

Definition at line 50 of file quarter_tube_mesh.template.cc.

References oomph::QuarterTubeMesh< ELEMENT >::Domain_pt, oomph::AlgebraicRefineableQuarterTubeMesh< ELEMENT >::setup_algebraic_node_update(), oomph::QuarterTubeMesh< ELEMENT >::Xi_hi, and oomph::QuarterTubeMesh< ELEMENT >::Xi_lo.

◆ ~QuarterTubeMesh()

template<class ELEMENT>

virtual oomph::QuarterTubeMesh< ELEMENT >::~QuarterTubeMesh ( )

inlinevirtual

Destructor: empty.

Definition at line 89 of file quarter_tube_mesh.template.h.

References oomph::QuarterTubeMesh< ELEMENT >::Domain_pt.

Member Function Documentation

◆ axial_spacing_fct_pt()

template<class ELEMENT>

virtual QuarterTubeDomain::AxialSpacingFctPt& oomph::QuarterTubeMesh< ELEMENT >::axial_spacing_fct_pt ( )

inlinevirtual

Function pointer for function for axial spacing.

Reimplemented in oomph::AlgebraicRefineableQuarterTubeMesh< ELEMENT >.

Definition at line 111 of file quarter_tube_mesh.template.h.

References oomph::QuarterTubeDomain::axial_spacing_fct_pt(), and oomph::QuarterTubeMesh< ELEMENT >::Domain_pt.

◆ bl_squash_fct_pt()

template<class ELEMENT>

QuarterTubeDomain::BLSquashFctPt& oomph::QuarterTubeMesh< ELEMENT >::bl_squash_fct_pt ( )

inline

Function pointer for function that squashes the outer macro elements towards the wall by mapping the input value of the "radial" macro element coordinate to the return value (defined in the underlying Domain object)

Definition at line 104 of file quarter_tube_mesh.template.h.

References oomph::QuarterTubeDomain::bl_squash_fct_pt(), and oomph::QuarterTubeMesh< ELEMENT >::Domain_pt.
