#include <channel_with_leaflet_mesh.template.h>

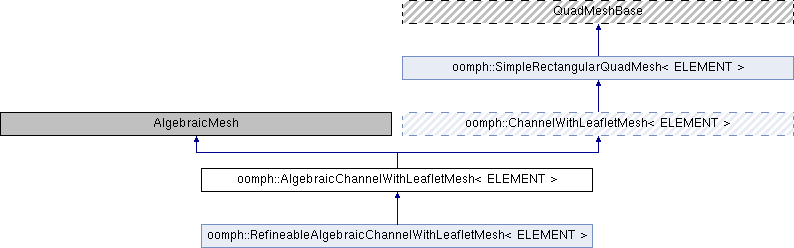

Inheritance diagram for oomph::AlgebraicChannelWithLeafletMesh< ELEMENT >:

Public Member Functions
	AlgebraicChannelWithLeafletMesh (GeomObject leaflet_pt, const double &lleft, const double &lright, const double &hleaflet, const double &htot, const unsigned &nleft, const unsigned &nright, const unsigned &ny1, const unsigned &ny2, TimeStepper time_stepper_pt=&Mesh::Default_TimeStepper)
	Constructor: Pass pointer to GeomObject that represents the leaflet, the length of the domain to left and right of the leaflet, the height of the leaflet and the overall height of the channel, the number of element columns to the left and right of the leaflet, the number of rows of elements from the bottom of the channel to the end of the leaflet, the number of rows of elements above the end of the leaflet. Timestepper defaults to Steady default Timestepper defined in the Mesh base class. More...

virtual	~AlgebraicChannelWithLeafletMesh ()
	Destructor: empty. More...

void	update_node_update (AlgebraicNode *&node_pt)
	Update the geometric references that are used to update node after mesh adaptation. Empty – no update of node update required without adaptivity. More...

void	algebraic_node_update (const unsigned &t, AlgebraicNode *&node_pt)
	Update nodal position at time level t (t=0: present; t>0: previous) More...

Public Member Functions inherited from oomph::ChannelWithLeafletMesh< ELEMENT >
	ChannelWithLeafletMesh (GeomObject leaflet_pt, const double &lleft, const double &lright, const double &hleaflet, const double &htot, const unsigned &nleft, const unsigned &nright, const unsigned &ny1, const unsigned &ny2, TimeStepper time_stepper_pt=&Mesh::Default_TimeStepper)
	Constructor: Pass pointer to GeomObject that represents the leaflet, the length of the domain to left and right of the leaflet, the height of the leaflet and the overall height of the channel, the number of element columns to the left and right of the leaflet, the number of rows of elements from the bottom of the channel to the end of the leaflet, the number of rows of elements above the end of the leaflet. Timestepper defaults to Steady default Timestepper defined in the Mesh base class. More...

virtual	~ChannelWithLeafletMesh ()
	Destructor : empty. More...

ChannelWithLeafletDomain *	domain_pt ()
	Access function to domain. More...

Public Member Functions inherited from oomph::SimpleRectangularQuadMesh< ELEMENT >
	SimpleRectangularQuadMesh (const unsigned &Nx, const unsigned &Ny, const double &Lx, const double &Ly, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
	Constructor: Pass number of elements in the horizontal and vertical directions, and the corresponding dimensions. Timestepper defaults to Steady. More...

const unsigned &	nx () const
	Access function for number of elements in x directions. More...

const unsigned &	ny () const
	Access function for number of elements in y directions. More...

Protected Member Functions
void	setup_algebraic_node_update ()
	Function to setup the algebraic node update. More...

void	node_update_I (const unsigned &t, AlgebraicNode *&node_pt)
	Update function for nodes in lower left region (I) More...

void	node_update_II (const unsigned &t, AlgebraicNode *&node_pt)
	Update function for nodes in lower right region (II) More...

void	node_update_III (const unsigned &t, AlgebraicNode *&node_pt)
	Update function for nodes in upper left region (III) More...

void	node_update_IV (const unsigned &t, AlgebraicNode *&node_pt)
	Update function for nodes in upper right region (IV) More...

void	slanted_bound_up (const unsigned &t, const Vector< double > &zeta, Vector< double > &r)
	Helper function. More...

Protected Attributes
double	X_0

double	Hleaflet

Protected Attributes inherited from oomph::ChannelWithLeafletMesh< ELEMENT >
ChannelWithLeafletDomain *	Domain_pt
	Pointer to domain. More...

GeomObject *	Leaflet_pt
	Pointer to GeomObject that represents the leaflet. More...

Detailed Description

template<class ELEMENT>
class oomph::AlgebraicChannelWithLeafletMesh< ELEMENT >

Algebraic version of ChannelWithLeafletMesh. Leaflet is assumed to be in its undeformed (straight vertical) position when the algebraic node update is set up.

Definition at line 333 of file channel_with_leaflet_mesh.template.h.

Constructor & Destructor Documentation

◆ AlgebraicChannelWithLeafletMesh()

template<class ELEMENT >

oomph::AlgebraicChannelWithLeafletMesh< ELEMENT >::AlgebraicChannelWithLeafletMesh	(	GeomObject *	leaflet_pt,
		const double &	lleft,
		const double &	lright,
		const double &	hleaflet,
		const double &	htot,
		const unsigned &	nleft,
		const unsigned &	nright,
		const unsigned &	ny1,
		const unsigned &	ny2,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`
	)

inline

Constructor: Pass pointer to GeomObject that represents the leaflet, the length of the domain to left and right of the leaflet, the height of the leaflet and the overall height of the channel, the number of element columns to the left and right of the leaflet, the number of rows of elements from the bottom of the channel to the end of the leaflet, the number of rows of elements above the end of the leaflet. Timestepper defaults to Steady default Timestepper defined in the Mesh base class.

Definition at line 346 of file channel_with_leaflet_mesh.template.h.

References oomph::ChannelWithLeafletMesh< ELEMENT >::Leaflet_pt.
