oomph::SimpleRectangularQuadMesh< ELEMENT > Class Template Reference

#include <simple_rectangular_quadmesh.template.h>

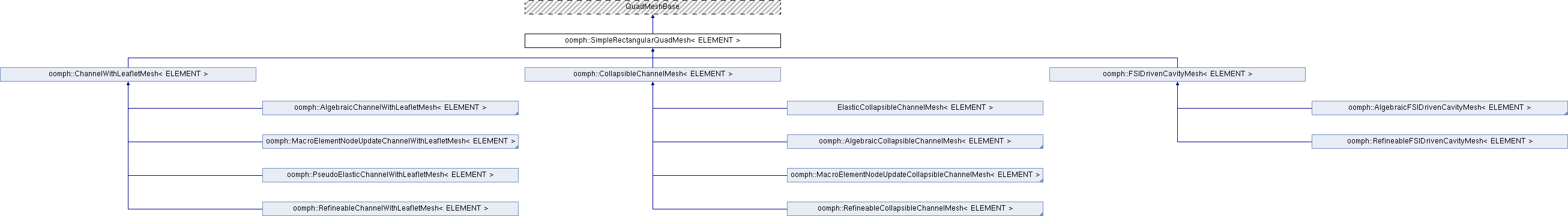

Inheritance diagram for oomph::SimpleRectangularQuadMesh< ELEMENT >:

Public Member Functions
	SimpleRectangularQuadMesh (const unsigned &Nx, const unsigned &Ny, const double &Lx, const double &Ly, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
	Constructor: Pass number of elements in the horizontal and vertical directions, and the corresponding dimensions. Timestepper defaults to Steady. More...
const unsigned &	nx () const
	Access function for number of elements in x directions. More...
const unsigned &	ny () const
	Access function for number of elements in y directions. More...

Private Attributes
unsigned	NX
	Number of elements in x direction. More...
unsigned	NY
	Number of elements in y direction. More...

Detailed Description

template<class ELEMENT>
class oomph::SimpleRectangularQuadMesh< ELEMENT >

Simple rectangular 2D Quad mesh class. Nx : number of elements in the x direction

Ny : number of elements in the y direction

Lx : length in the x direction

Ly : length in the y direction

Ordering of elements: 'Lower left' to 'lower right' then 'upwards'

Timestepper defaults to Steady.

Definition at line 62 of file simple_rectangular_quadmesh.template.h.

Constructor & Destructor Documentation

SimpleRectangularQuadMesh()

template<class ELEMENT >

oomph::SimpleRectangularQuadMesh< ELEMENT >::SimpleRectangularQuadMesh	(	const unsigned &	Nx,
		const unsigned &	Ny,
		const double &	Lx,
		const double &	Ly,
		TimeStepper *	time_stepper_pt = &Mesh::Default_TimeStepper
	)

Constructor: Pass number of elements in the horizontal and vertical directions, and the corresponding dimensions. Timestepper defaults to Steady.

Constructor for 2D Quad mesh class:

Nx : number of elements in the x direction

Ny : number of elements in the y direction

Lx : length in the x direction

Ly : length in the y direction

Ordering of elements: 'Lower left' to 'lower right' then 'upwards'

Timestepper defaults to Steady.

Definition at line 57 of file simple_rectangular_quadmesh.template.cc.

Member Function Documentation

nx()

template<class ELEMENT>

const unsigned& oomph::SimpleRectangularQuadMesh< ELEMENT >::nx ( ) const

inline

Access function for number of elements in x directions.

Definition at line 76 of file simple_rectangular_quadmesh.template.h.

References oomph::SimpleRectangularQuadMesh< ELEMENT >::NX.

ny()

template<class ELEMENT>

const unsigned& oomph::SimpleRectangularQuadMesh< ELEMENT >::ny ( ) const

inline

Access function for number of elements in y directions.

Definition at line 79 of file simple_rectangular_quadmesh.template.h.

References oomph::SimpleRectangularQuadMesh< ELEMENT >::NY.

Member Data Documentation

NX

template<class ELEMENT>

unsigned oomph::SimpleRectangularQuadMesh< ELEMENT >::NX

private

Number of elements in x direction.

Definition at line 84 of file simple_rectangular_quadmesh.template.h.

Referenced by oomph::SimpleRectangularQuadMesh< ELEMENT >::nx().

NY

template<class ELEMENT>

unsigned oomph::SimpleRectangularQuadMesh< ELEMENT >::NY

private

Number of elements in y direction.

Definition at line 87 of file simple_rectangular_quadmesh.template.h.

Referenced by oomph::SimpleRectangularQuadMesh< ELEMENT >::ny().

---

The documentation for this class was generated from the following files:

• simple_rectangular_quadmesh.template.h
• simple_rectangular_quadmesh.template.cc
