#include <quarter_pipe_mesh.template.h>

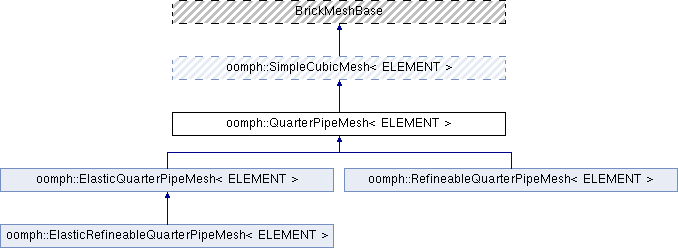

Inheritance diagram for oomph::QuarterPipeMesh< ELEMENT >:

Public Member Functions
	QuarterPipeMesh (const unsigned &ntheta, const unsigned &nr, const unsigned &nz, const double &rmin, const double &rmax, const double &length, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
	Constructor: Pass number of elements in various directions, the inner and outer radius and the length of the tube. More...

virtual	~QuarterPipeMesh ()
	Empty Destructor. More...

QuarterPipeDomain *	domain_pt ()
	Access function to domain. More...

QuarterPipeDomain *	domain_pt () const
	Access function to underlying domain. More...

Public Member Functions inherited from oomph::SimpleCubicMesh< ELEMENT >
	SimpleCubicMesh (const unsigned &nx, const unsigned &ny, const unsigned &nz, const double &lx, const double &ly, const double &lz, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
	Constructor: Pass number of elements in the x, y, and z directions, and the corresponding dimensions. Assume that the back lower left corner is located at (0,0,0) Timestepper defaults to Steady. More...

	SimpleCubicMesh (const unsigned &nx, const unsigned &ny, const unsigned &nz, const double &xmin, const double &xmax, const double &ymin, const double &ymax, const double &zmin, const double &zmax, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
	Constructor: Pass the number of elements in the x,y and z directions and the correspoding minimum and maximum values of the coordinates in each direction. More...

const unsigned &	nx () const
	Access function for number of elements in x directions. More...

const unsigned &	ny () const
	Access function for number of elements in y directions. More...

const unsigned &	nz () const
	Access function for number of elements in y directions. More...

Protected Attributes
unsigned	Ntheta
	Number of elements azimuthal direction. More...

unsigned	Nr
	Number of elements radial direction. More...

unsigned	Nz
	Number of elements axial direction. More...

double	Rmin
	Inner radius. More...

double	Rmax
	Outer radius. More...

double	Length
	Length. More...

QuarterPipeDomain *	Domain_pt
	Pointer to domain. More...

Protected Attributes inherited from oomph::SimpleCubicMesh< ELEMENT >
unsigned	Nx
	Number of elements in x direction. More...

unsigned	Ny
	Number of elements in y direction. More...

unsigned	Nz
	Number of elements in y direction. More...

double	Xmin
	Minimum value of x coordinate. More...

double	Xmax
	Maximum value of x coordinate. More...

double	Ymin
	Minimum value of y coordinate. More...

double	Ymax
	Minimum value of y coordinate. More...

double	Zmin
	Minimum value of z coordinate. More...

double	Zmax
	Maximum value of z coordinate. More...

Additional Inherited Members
Protected Member Functions inherited from oomph::SimpleCubicMesh< ELEMENT >
void	build_mesh (TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
	Generic mesh construction function: contains all the hard work. More...

Detailed Description

template<class ELEMENT>
class oomph::QuarterPipeMesh< ELEMENT >

Non refineable quarter pipe mesh class Deform a simple cubic mesh into a quarter pipe r: radial direction theta: azimuthal direction z: axis direction

Definition at line 59 of file quarter_pipe_mesh.template.h.

Constructor & Destructor Documentation

◆ QuarterPipeMesh()

template<class ELEMENT >

oomph::QuarterPipeMesh< ELEMENT >::QuarterPipeMesh	(	const unsigned &	ntheta,
		const unsigned &	nr,
		const unsigned &	nz,
		const double &	rmin,
		const double &	rmax,
		const double &	length,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`
	)
