Refineable fish shaped mesh with algebraic node update function. More...
#include <fish_mesh.template.h>

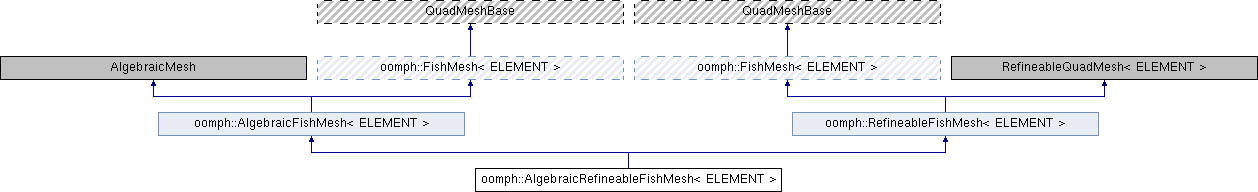

Inheritance diagram for oomph::AlgebraicRefineableFishMesh< ELEMENT >:
Public Member Functions | |
| AlgebraicRefineableFishMesh (TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper) | |
| AlgebraicRefineableFishMesh (GeomObject *back_pt, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper) | |
| Constructor: Pass pointer GeomObject that defines the fish's back and pointer to timestepper. (defaults to (Steady) default timestepper defined in Mesh) More... | |
| virtual | ~AlgebraicRefineableFishMesh () |
| Destructor: empty. More... | |
| void | node_update (const bool &update_all_solid_nodes=false) |
| Resolve node update function: Use the one defined in the AlgebraicFishMesh (where the bool flag is explained) More... | |
 Public Member Functions inherited from oomph::AlgebraicFishMesh< ELEMENT > | |
| AlgebraicFishMesh (TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper) | |
| Constructor: Pass pointer to timestepper. (defaults to (Steady) default timestepper defined in Mesh) More... | |
| AlgebraicFishMesh (GeomObject *back_pt, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper) | |
| Constructor: Pass pointer GeomObject that defines the fish's back and pointer to timestepper (defaults to (Steady) default timestepper defined in Mesh). More... | |
| virtual | ~AlgebraicFishMesh () |
| Destructor: empty. More... | |
| void | algebraic_node_update (const unsigned &t, AlgebraicNode *&node_pt) |
| Update nodal position at time level t (t=0: present; t>0: previous) More... | |
| void | update_node_update (AlgebraicNode *&node_pt) |
| Update the geometric references that are used to update node after mesh adaptation. We're assuming that the GeomObject that specifies the fish back does not have sub-objects, therefore no update is required – all reference values can simply be scaled. We simply paranoid-check that this is actually the case, by checking if locate_zeta() returns the original data. More... | |
| Public Member Functions inherited from oomph::FishMesh< ELEMENT > | |
| FishMesh (TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper) | |
| Constructor: Pass pointer to timestepper (defaults to the (Steady) default timestepper defined in Mesh) More... | |
| FishMesh (GeomObject *back_pt, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper) | |
| Constructor: Pass pointer GeomObject that defines the fish's back and pointer to timestepper (defaults to the (Steady) default timestepper defined in Mesh) More... | |
| virtual | ~FishMesh () |
| Destructor: Kill the geom object that represents the fish's back (if necessary) More... | |
| GeomObject *& | fish_back_pt () |
| Access function to geom object that represents the fish's back. More... | |
| FishDomain *& | domain_pt () |
| Access function to FishDomain. More... | |
| Public Member Functions inherited from oomph::RefineableFishMesh< ELEMENT > | |
| RefineableFishMesh (TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper) | |
| Constructor: Pass pointer to timestepper – defaults to (Steady) default timestepper defined in the Mesh base class. More... | |
| RefineableFishMesh (GeomObject *back_pt, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper) | |
| Constructor: Pass pointer GeomObject that defines the fish's back and pointer to timestepper (defaults to (Steady) default timestepper defined in Mesh) More... | |
| virtual | ~RefineableFishMesh () |
| Destructor: Empty – all cleanup gets handled in the base classes. More... | |
Additional Inherited Members | |
| Protected Types inherited from oomph::FishMesh< ELEMENT > | |
| enum | { Lower_body, Upper_body, Lower_fin, Upper_fin } |
| Remesh function ids. More... | |
| Protected Member Functions inherited from oomph::AlgebraicFishMesh< ELEMENT > | |
| void | node_update_in_body (const unsigned &t, AlgebraicNode *&node_pt) |
| Algebraic update function for nodes in upper/lower body. More... | |
| void | node_update_in_fin (const unsigned &t, AlgebraicNode *&node_pt) |
| Algebraic update function for nodes in upper/lower fin. More... | |
| void | setup_algebraic_node_update () |
| Setup algebraic update operation for all nodes (separate function because this task needs to be performed by both constructors) More... | |
| Protected Member Functions inherited from oomph::FishMesh< ELEMENT > | |
| void | build_mesh (TimeStepper *time_stepper_pt) |
| Build the mesh, using the geometric object identified by Back_pt. More... | |
| Protected Member Functions inherited from oomph::RefineableFishMesh< ELEMENT > | |
| void | setup_adaptivity () |
| Setup all the information that's required for spatial adaptivity: Set pointers to macro elements and build quadtree forest. (contained in separate function as this functionality is common to both constructors),. More... | |
| Protected Attributes inherited from oomph::FishMesh< ELEMENT > | |
| GeomObject * | Back_pt |
| Pointer to fish back. More... | |
| FishDomain * | Domain_pt |
| Pointer to domain. More... | |
| bool | Must_kill_fish_back |
| Do I need to kill the fish back geom object? More... | |
Detailed Description
template<class ELEMENT>
class oomph::AlgebraicRefineableFishMesh< ELEMENT >
Refineable fish shaped mesh with algebraic node update function.
Definition at line 523 of file fish_mesh.template.h.
Constructor & Destructor Documentation
◆ AlgebraicRefineableFishMesh() [1/2]
template<class ELEMENT >
|
inline |
Constructor: Pass pointer to timestepper. (defaults to (Steady) default timestepper defined in Mesh)
Definition at line 537 of file fish_mesh.template.h.
◆ AlgebraicRefineableFishMesh() [2/2]
template<class ELEMENT >
|
inline |
Constructor: Pass pointer GeomObject that defines the fish's back and pointer to timestepper. (defaults to (Steady) default timestepper defined in Mesh)
Definition at line 553 of file fish_mesh.template.h.
◆ ~AlgebraicRefineableFishMesh()
template<class ELEMENT >
|
inlinevirtual |
Destructor: empty.
Definition at line 563 of file fish_mesh.template.h.
Member Function Documentation
◆ node_update()
template<class ELEMENT >
|
inlinevirtual |
Resolve node update function: Use the one defined in the AlgebraicFishMesh (where the bool flag is explained)
Reimplemented from oomph::AlgebraicFishMesh< ELEMENT >.
Definition at line 567 of file fish_mesh.template.h.
References oomph::AlgebraicFishMesh< ELEMENT >::node_update().
The documentation for this class was generated from the following file:
