Public Member Functions | |
| QComplexHarmonicElement () | |
| Constructor: Call constructors for QElement and Poisson equations. More... | |
| unsigned | required_nvalue (const unsigned &n) const |
| Required # of `values' (pinned or dofs) at node n. Here there are two (u and w) More... | |
| void | output (ostream &outfile) |
| Output function overloaded from ComplexHarmonicEquations. More... | |
| void | output (ostream &outfile, const unsigned &Nplot) |
| Output function overloaded from ComplexHarmonicEquations. More... | |
 Public Member Functions inherited from ComplexHarmonicEquations | |
| ComplexHarmonicEquations () | |
| Empty Constructor. More... | |
| virtual double | u (const unsigned &n) const |
| Access function: First eigenfunction value at local node n Note that solving the eigenproblem does not assign values to this storage space. It is used for output purposes only. More... | |
| virtual double | w (const unsigned &n) const |
| Second eigenfunction value at local node n. More... | |
| void | output (ostream &outfile) |
| Output the eigenfunction with default number of plot points. More... | |
| void | output (ostream &outfile, const unsigned &nplot) |
| Output FE representation of soln: x,y,u or x,y,z,u at Nplot plot points. More... | |
| void | fill_in_contribution_to_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix) |
| Assemble the contributions to the jacobian and mass matrices. More... | |
| double | interpolated_u (const Vector< double > &s) const |
| Return FE representation of function value u(s) at local coordinate s. More... | |
| double | interpolated_w (const Vector< double > &s) const |
| Return FE representation of function value w(s) at local coordinate s. More... | |
Protected Member Functions | |
| double | dshape_eulerian (const Vector< double > &s, Shape &psi, DShape &dpsidx) const |
| Shape, test functions & derivs. w.r.t. to global coords. Return Jacobian. More... | |
| double | dshape_eulerian_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsidx) const |
| Shape, test functions & derivs. w.r.t. to global coords. at integration point ipt. Return Jacobian. More... | |
| Protected Member Functions inherited from ComplexHarmonicEquations | |
| virtual int | u_local_eqn (const unsigned &n, const unsigned &i) |
| Access function that returns the local equation number of the unknown in the problem. Default is to assume that it is the first (only) value stored at the node. More... | |
Detailed Description

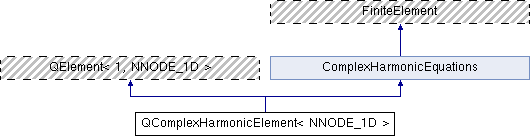

template<unsigned NNODE_1D>
class QComplexHarmonicElement< NNODE_1D >
QComplexHarmonicElement<NNODE_1D> elements are 1D Elements with NNODE_1D nodal points that are used to solve the ComplexHarmonic eigenvalue Problem described by ComplexHarmonicEquations.
Definition at line 306 of file complex_harmonic.cc.
Constructor & Destructor Documentation
◆ QComplexHarmonicElement()
|
inline |
Constructor: Call constructors for QElement and Poisson equations.
Definition at line 314 of file complex_harmonic.cc.
Member Function Documentation
◆ dshape_eulerian()
|
inlineprotectedvirtual |
Shape, test functions & derivs. w.r.t. to global coords. Return Jacobian.
Implements ComplexHarmonicEquations.
Definition at line 333 of file complex_harmonic.cc.
◆ dshape_eulerian_at_knot()
|
inlineprotectedvirtual |
Shape, test functions & derivs. w.r.t. to global coords. at integration point ipt. Return Jacobian.
Implements ComplexHarmonicEquations.
Definition at line 341 of file complex_harmonic.cc.
◆ output() [1/2]
|
inline |
Output function overloaded from ComplexHarmonicEquations.
Definition at line 322 of file complex_harmonic.cc.
References ComplexHarmonicEquations::output().
◆ output() [2/2]
|
inline |
Output function overloaded from ComplexHarmonicEquations.
Definition at line 326 of file complex_harmonic.cc.
References ComplexHarmonicEquations::output().
◆ required_nvalue()
|
inline |
Required # of `values' (pinned or dofs) at node n. Here there are two (u and w)
Definition at line 319 of file complex_harmonic.cc.
The documentation for this class was generated from the following file:
